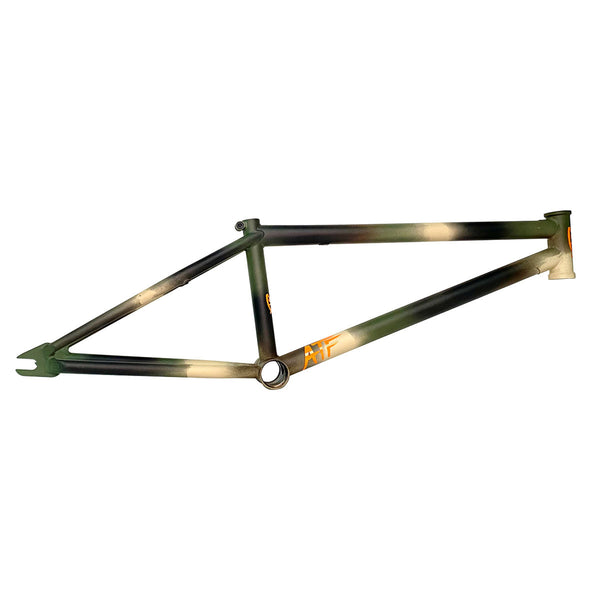

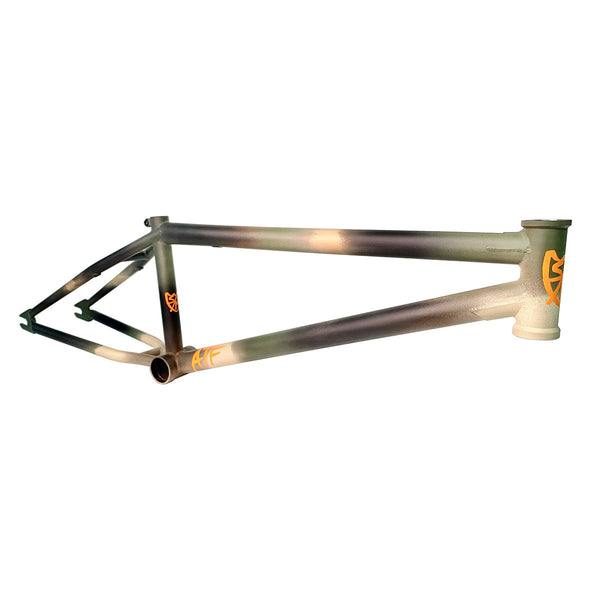

S&M ATF Frame

S&M

All Terrain Frame.

TOP TUBE LENGTHS

20″, 20.5″, 20.75″, 21″, 21.25″,21.5″,22″
REAR END LENGTH 13.4″-13.875″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid w/EZ-out punch slots
STANDOVER HEIGHT 8.5″
BRAKE MOUNTS Thread-On 990 (Mounts sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.65 lb (2.12 kg)
TUBESET Butted True Temper SuperTherm Tubing
