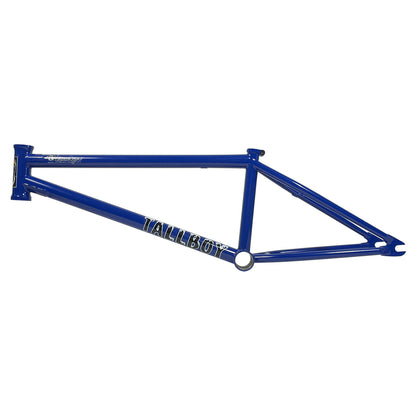

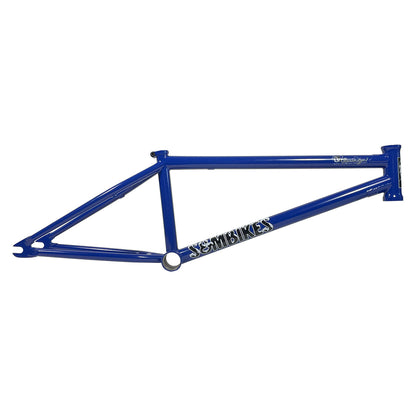

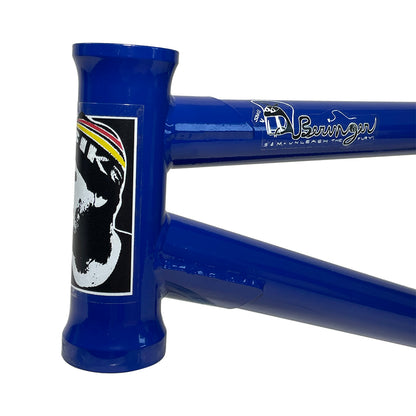

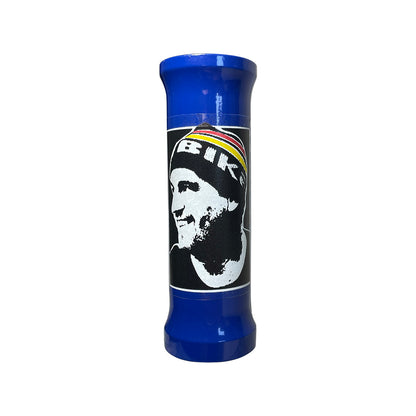

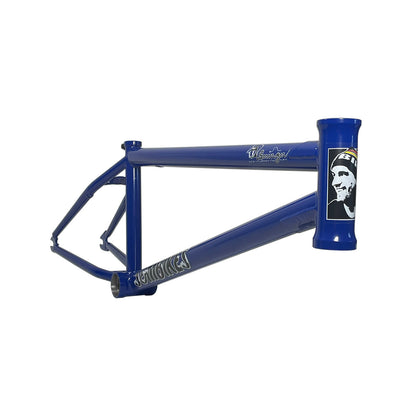

S&M tallboy V3 frame

S&M tallboy V3 frame

S&M

Regular price $ 519.99
Regular price $ 519.99 Sale price $ 519.99
Sale Sold out
Toptube

Taller head tube, taller standover, responsive geometry without being over the top (or over the bars), the TALLBOY V3 is everything you need in a utilitarian street vessel.

TOP TUBE LENGTHS: 20.75″, 21″,21.25″,21.5″
REAR END LENGTH: 13.25″
HEAD TUBE ANGLE: 75.25°
HEAD TUBE STYLE: Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE: 71°
SEAT CLAMP: Integrated
SEAT POST SIZE: 1″ (25.4mm)
BB HEIGHT: 11.8″
BB STYLE: Mid
STANDOVER HEIGHT: 9.2″
BRAKE MOUNTS: 5 Degree Angled Thread-On (sold separately) 990 Mounts
DROPOUTS: 14mm Slot, 4Q-Baked
GYRO TABS: None
WEIGHT: 20.75″: 4.65lbs/2.11kg
21″: 4.675lbs/2.12kg
21.25″: 4.678lbs/2.12kg
TUBESET: Butted ThermalX Tubing
