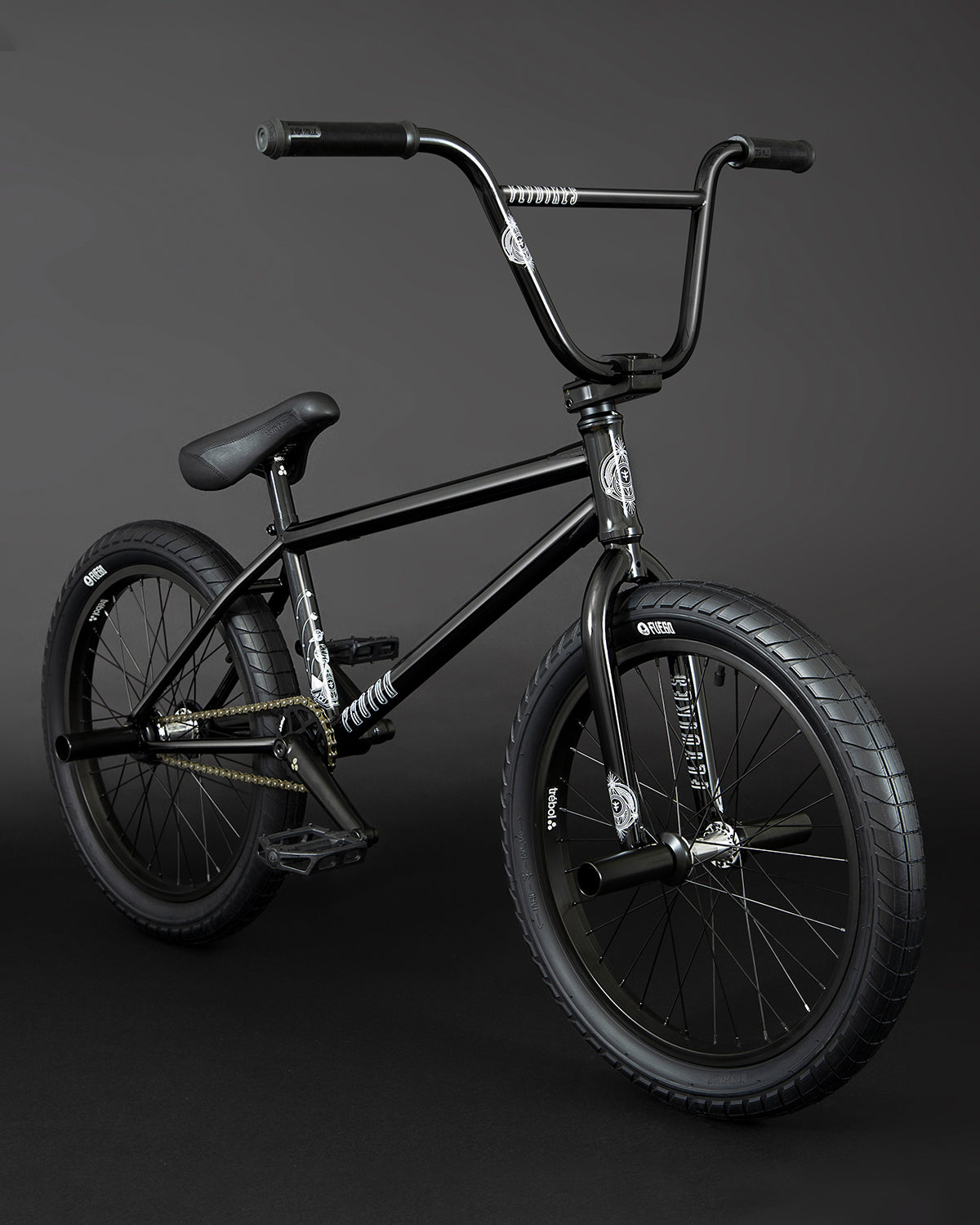

Fly Proton BMX Freecoaster

Fly Proton BMX Freecoaster

Fly Bikes

$ 910.00
$ 910.00
Sale Sold out
  • GEOMETRY:

  • TOP TUBE LENGTH
    21”
  • CHAIN STAY LENGTH
    13.2”
  • HEAD TUBE ANGLE
    75º
  • SEAT TUBE ANGLE
    71º
  • BB HEIGHT
    11.75”
  • STAND OVER HEIGHT
    9”
  • FORK OFFSET
    27mm.
  • BAR RISE
    9”
  • BAR WIDTH
    29”
  • BAR BACKSWEEP
    10º
  • BAR UPSWEEP
    2º
  • _

  • SPECIFICATIONS:

  • Frame
    Full 4130 CrMo / Removable Brake Mounts
  • Fork
    Integrated cone shape design / Full 4130 CrMo / 1 Piece Steer Tube
  • Bars
    Full 4130 CrMo
  • Grips
    Fly Devon / 160 mm Long
  • Stem
    Trebol Top Load / Forged / 6061-T6 Aluminum / 50mm

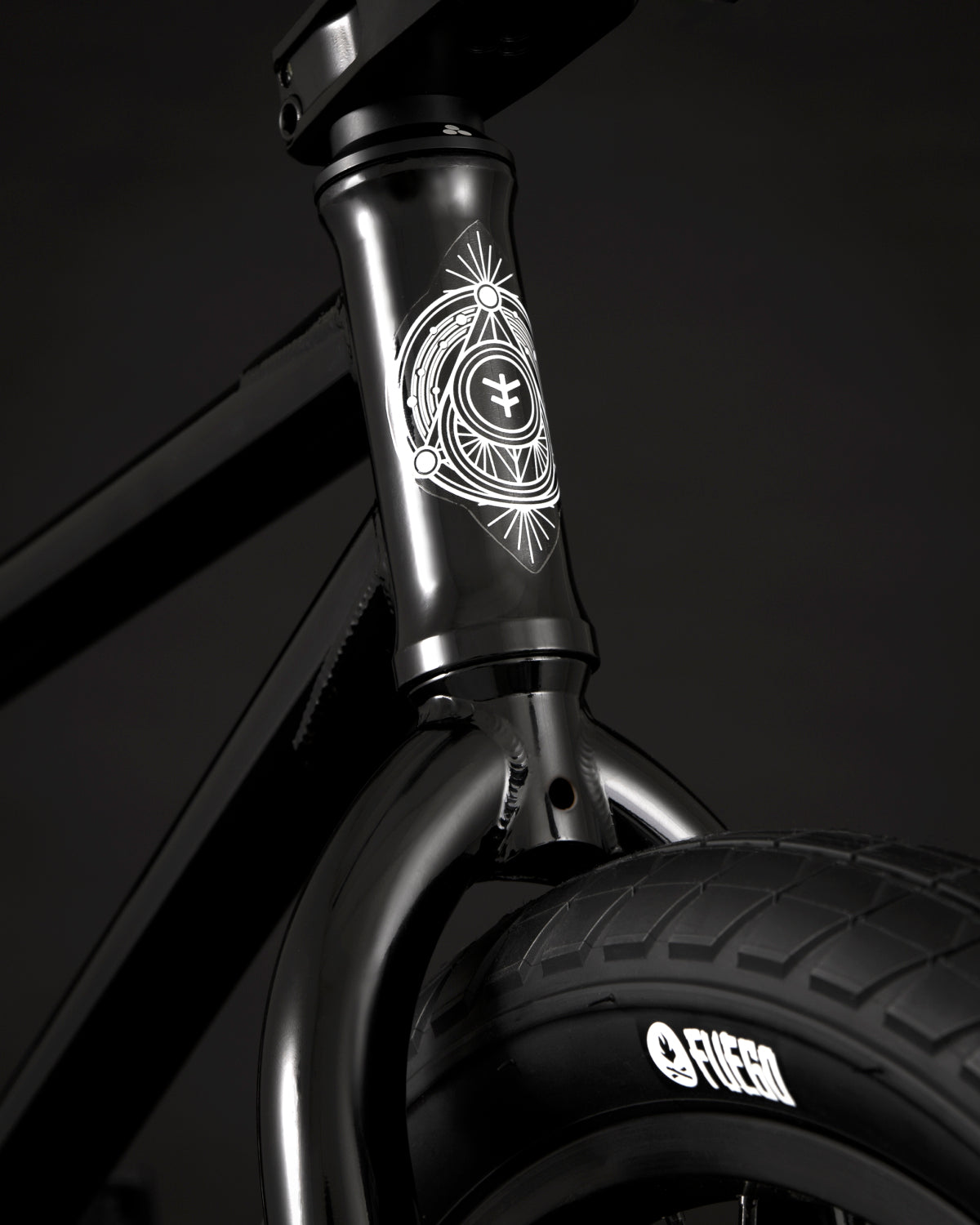

  • Headset
    Internal Sealed Bearing
  • Lever
    Generic Inged / Forged / 6061 T-6 Aluminum
  • Brake
    Trebol Springhanger / Forged / 6061 T-6 Aluminum

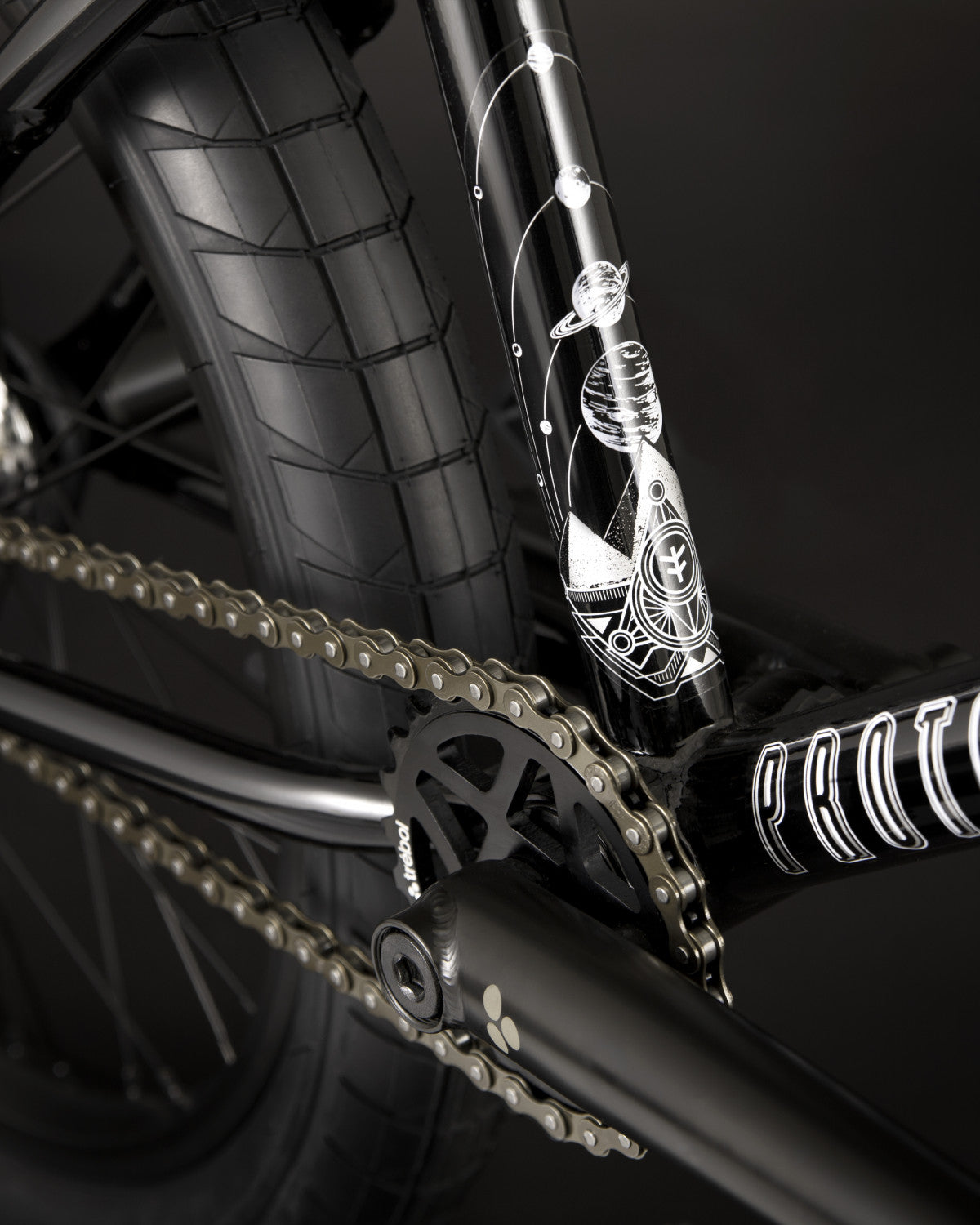

  • Cranks
    Trebol 3Pc / 4130 CrMo / 170 mm Arm Length
  • Bottom Bracket
    Mid / Sealed Bearing
  • Sprocket
    Trebol / CNC Machined / 6061-T6 Aluminum / 25T
  • Pedals
    Fly Ruben Graphite / Nylon - Fiberglass Compound
  • Chain
    510 Type / 69 Links
  • Rims
    Trebol / Semi-double Walled / 6061-T6 Aluminum / 36H

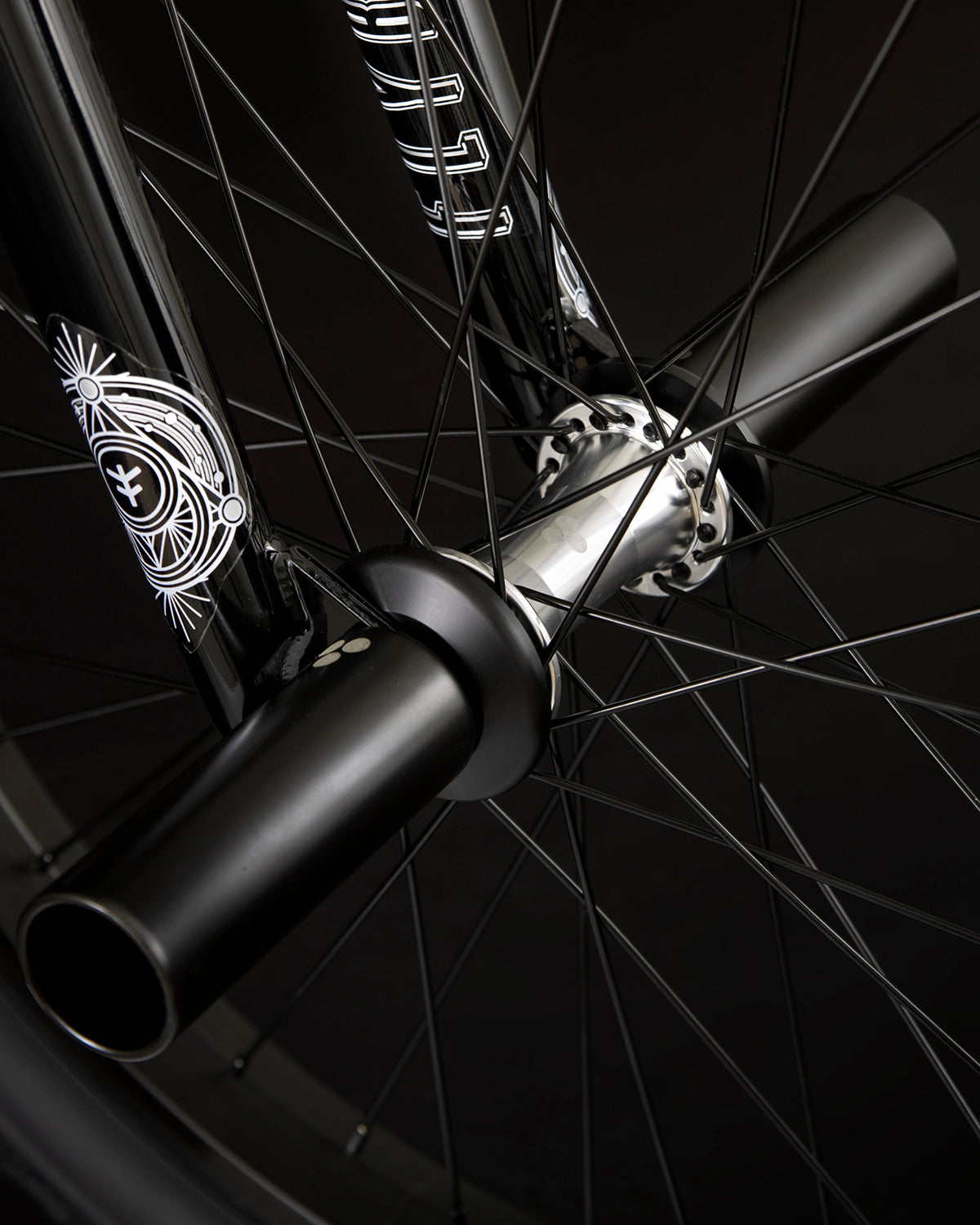

  • Front Hub
    Trebol Male / Sealed Bearing / 10mm Male Axle / 36H

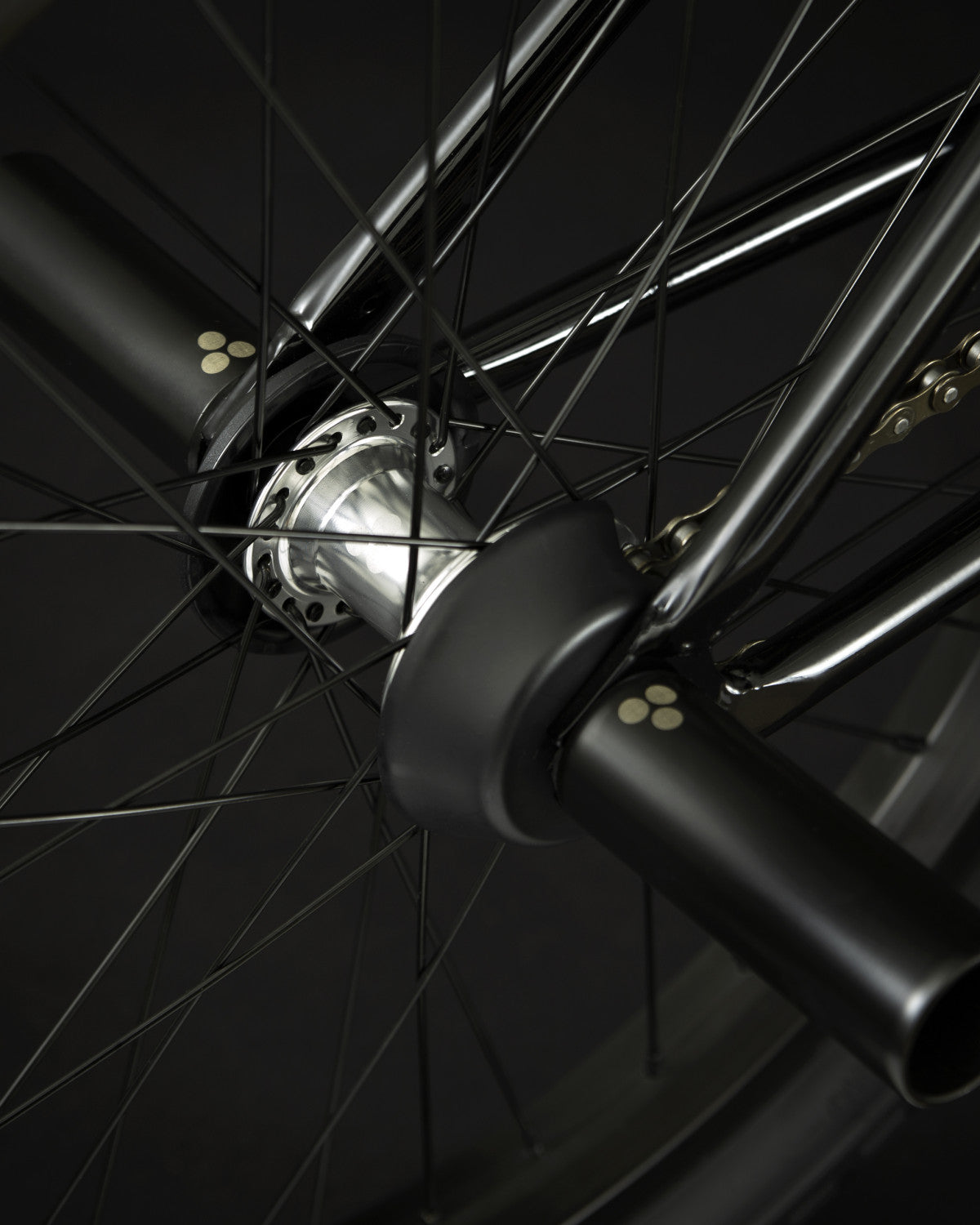

  • Rear Hub
    Trebol Male Freecoaster / Sealed Bearing / 14mm Male Axle / 36H / 9T
  • Tires
    Fly Fuego 2.30" Front & Rear / 60 TPI / 120 PSI

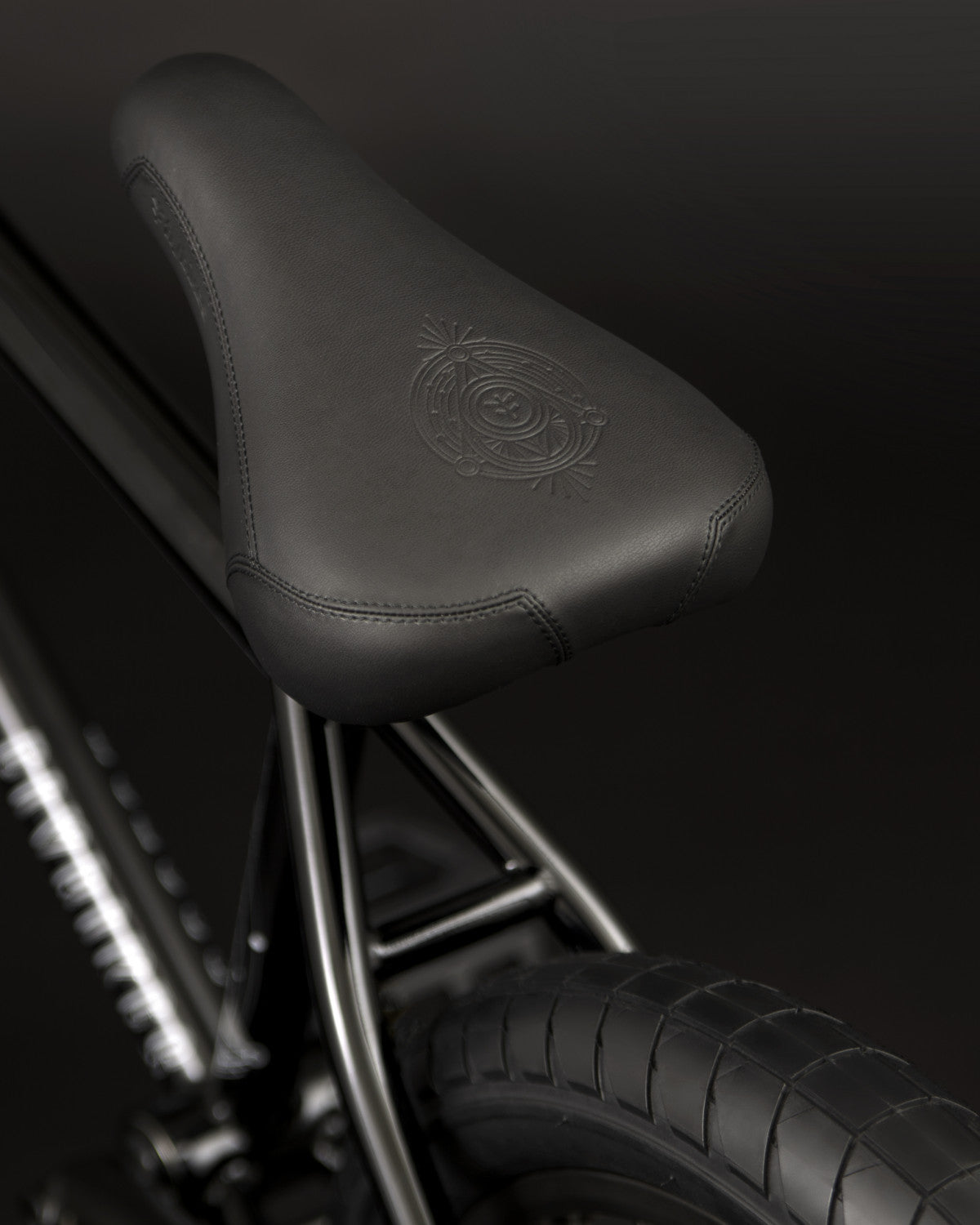

  • Seat
    Fly Proton Tripod / 100% Synthetic Leather / 25 mm Thickness
  • Post
    Trebol Tripod / Forged & CNC Machined / 6061-T6 Aluminum / 135 mm
  • Pegs
    Trebol HS Steel 2 Pairs
  • Weight (brakeless)
    11.9 Kg. / 26.2 lb.
