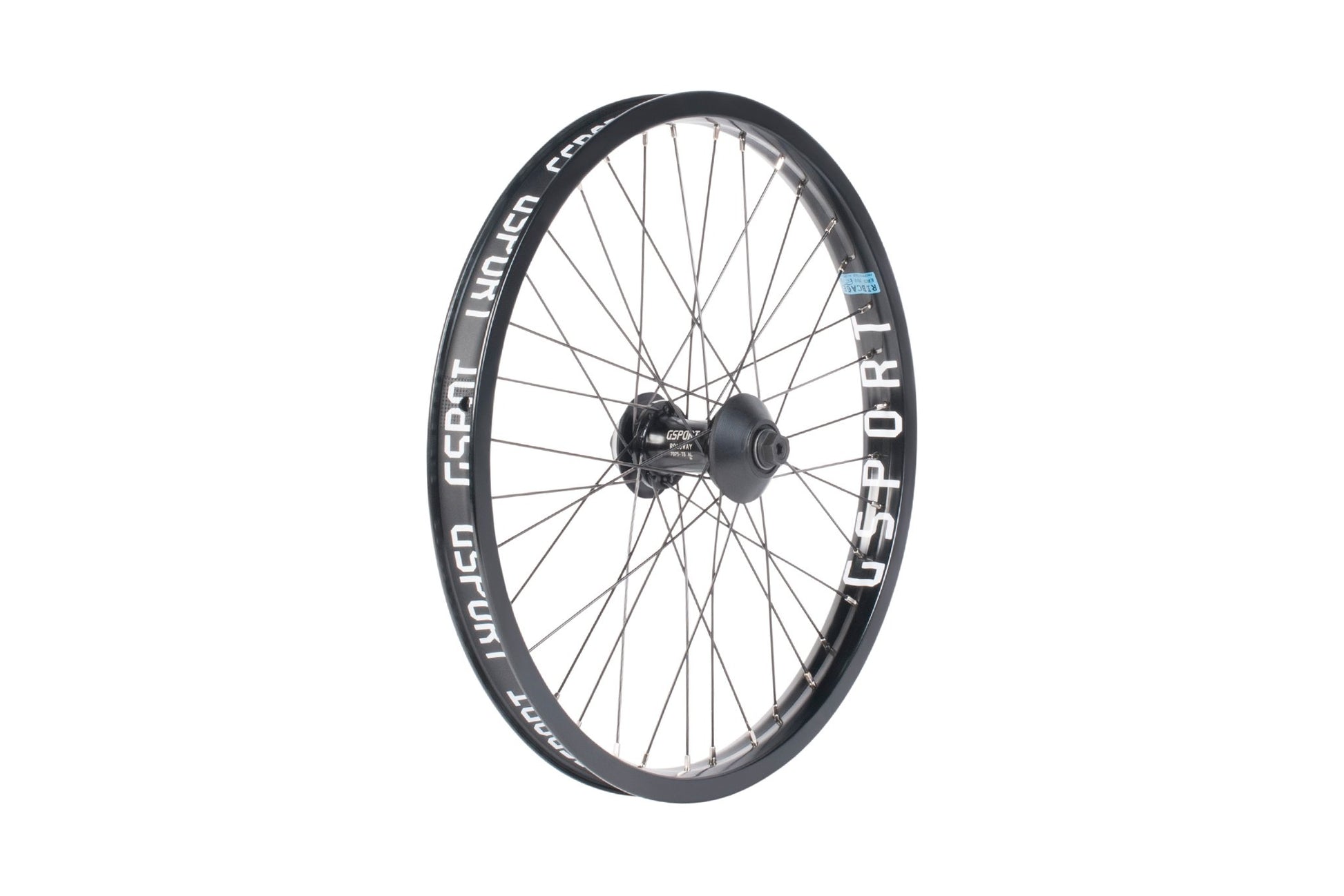

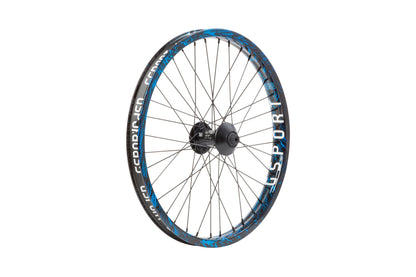

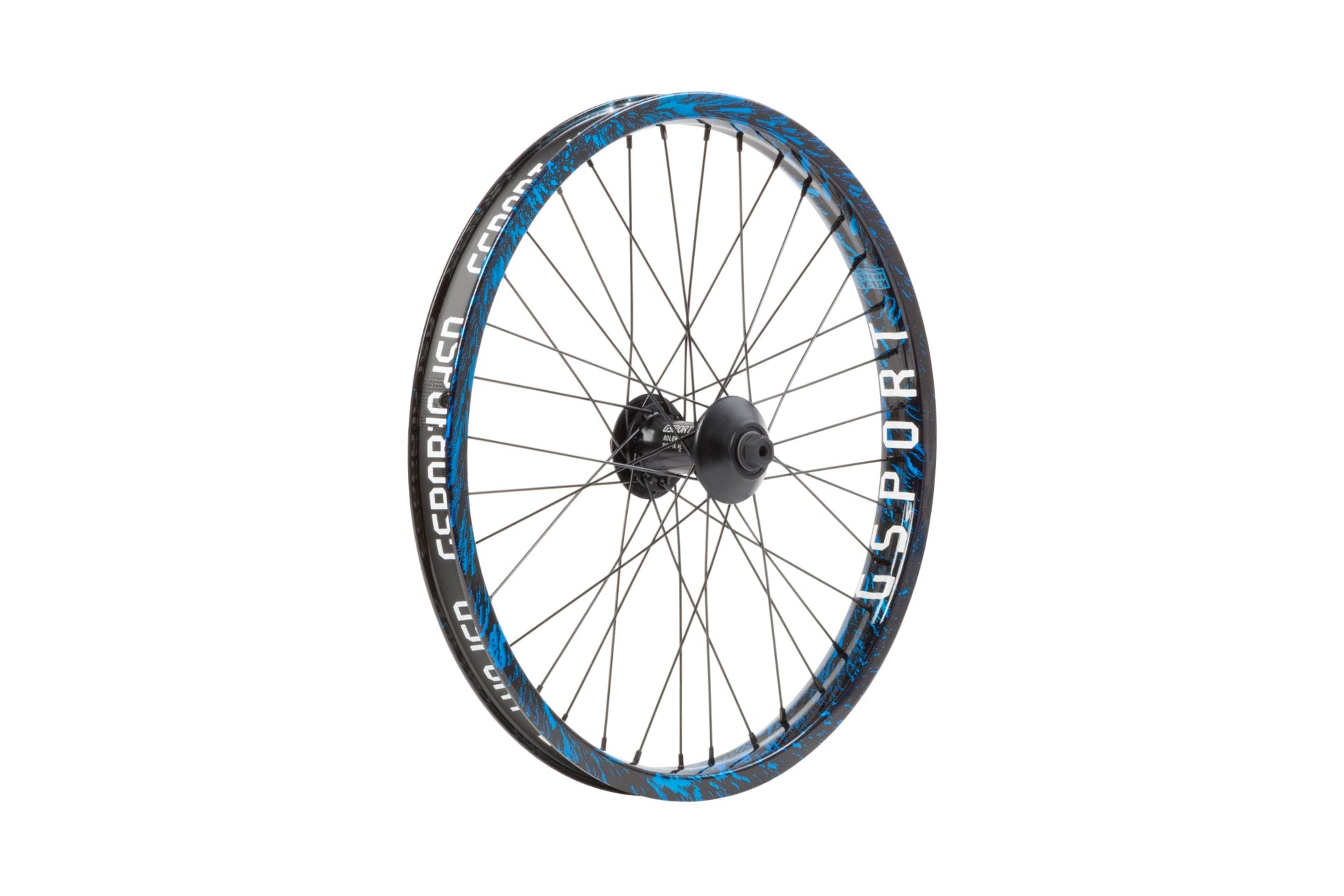

G-SPORT ELITE FRONT WHEEL
G-SPORT ELITE FRONT WHEEL
G-SPORT ELITE FRONT WHEEL

G-SPORT ELITE FRONT WHEEL

$ 224.99

Gsport

Sold Out
Description POWERS BMX VIDEOS Wheel Builder Frame Builder

ROLOWAY FRONT HUB

The new Roloway hub is a precision sealed front hub with 3/8” in-bound axle bolts and two plastic hub guards. An oversized axle, bearing configuration and 7075-T6 aluminum hub shell is used for unmatched durability.

ROLOWAY HUB SPECIFICATIONS

Spoke Configuration: 36 hole
Hub Shell Material: 7075-T6 aluminum
Hub Shell Bearings: 6804RS sealed cartridge ball bearing
Axle: 20mm 7075-T6 aluminum female axle with steel helicoiled threads.
Axle Bolts: 3/8″ heat-treated 4130 chromoly axle bolts
Guard Option: Plastic hub guards included
Flange Diameter Left: 44mm
Flange Diameter Right: 44mm
Center to Flange Left:28mm
Center to Flange Right: 28mm
Weight: 340g / 12 oz

RIBCAGE RIM


The Ribcage is our strongest rim. It features thick outer walls, cross-over-spoke lacing, and our patented “Rib” design.

RIBCAGE RIM SPECIFICATIONS

Sizes: 20" only
Drillings: 36 and 48
Weight: 500g / 17.6oz
Width: 36mm
Height: 18mm
ERD: 389mm

Recommended for the G-SPORT ELITE FRONT WHEEL
