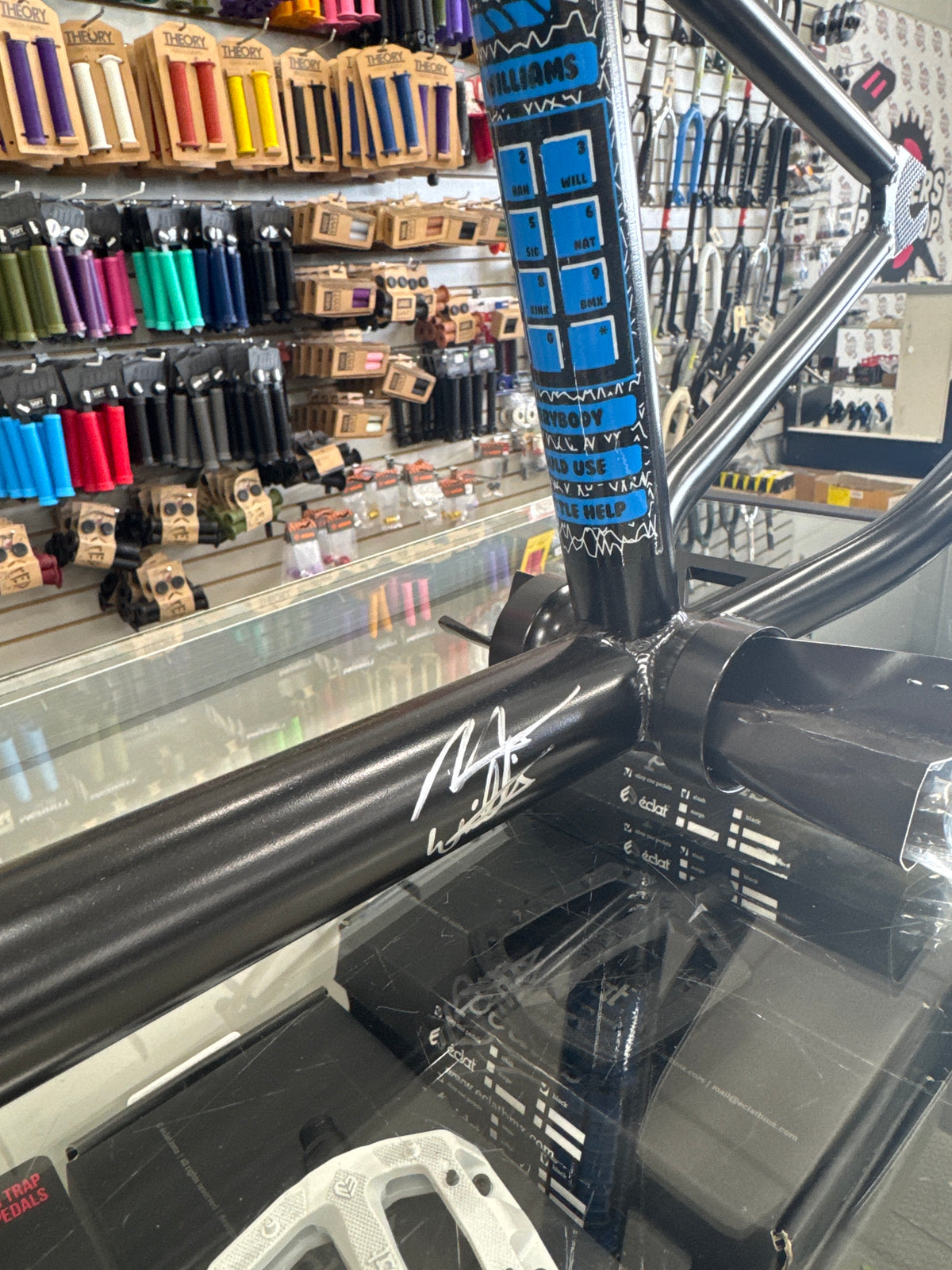

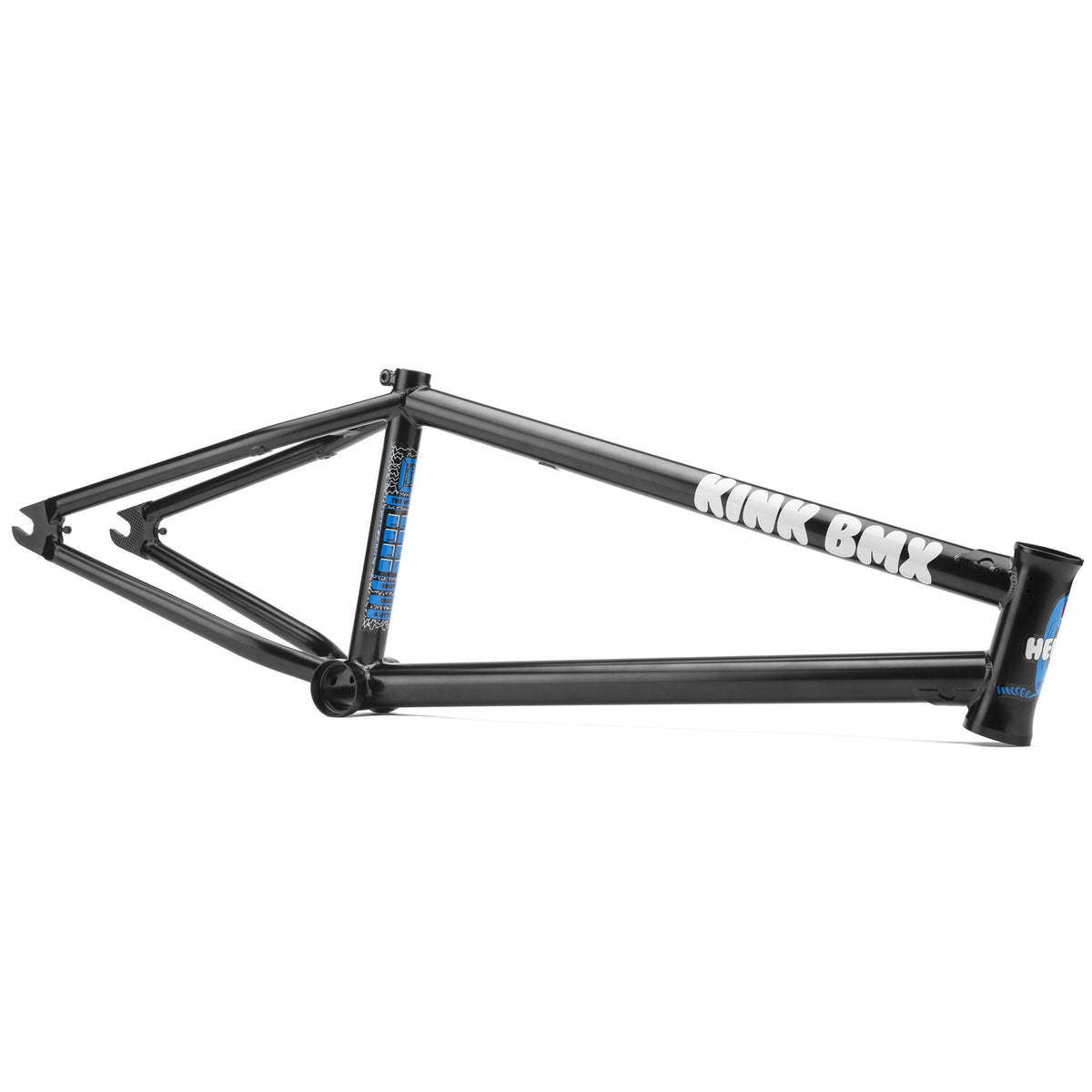

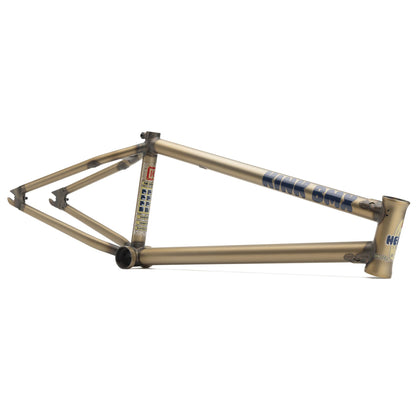

The Williams frame is Nathan Williams’ first signature frame from Kink and features modern street geometry while retaining a classic look. Despite the classic look though, the frame features several subtle details that should not be overlooked. The steeper 75.5-degree headtube is responsive, and the short 12.75” chainstay length makes the frame nimble without compromising on tire clearance; fitting up to 2.5” tires. The double butted toptube and downtube with gussets on both, ensure plenty of strength in the front end while the chainstay and seatstay bridge designs allot for generous tire clearance while adding as much stiffness as possible. Nathan’s frame of course comes standard with integrated seat post clamp, integrated chain tensioners, and removable brake mounts. Additional details like the custom seatstay bridge badge inlay, and interior dropout knurling round out both the good looks and serious functionality of the Williams frame.

GEOMETRY

Toptube Sizes: 20.5”, 20.75”, 21”, 21.25”

Chainstay Length: 12.75” Slammed

Bottom Bracket Height: 11.7”

Standover Height: 9”

Headtube Angle: 75.5°

Seattube Angle: 71°

Material: 100% Seamless Sanko 4130 Chromoly Tubing

Headtube: Integrated Campy Spec

Dropouts: Investment Cast with Integrated Chain Tensioners

Bottom Bracket: Internally and Externally Machined Mid Size BB

Braking: Removable Through-Bolt Brake Mount System

Toptube and Downtube Gussets

Integrated Seat Post Clamp

Oval Chainstays For Tire Clearance Up To 2.5”

CNC’d Seatstay Bridge with Kink Badge Inlay

Anti-Slip Interior Dropout Knurling
Weight: 4lb 15oz (20.5")
