*All Bolts and Nuts sold Individually!* Read below to find the right bolt for your profile axle.

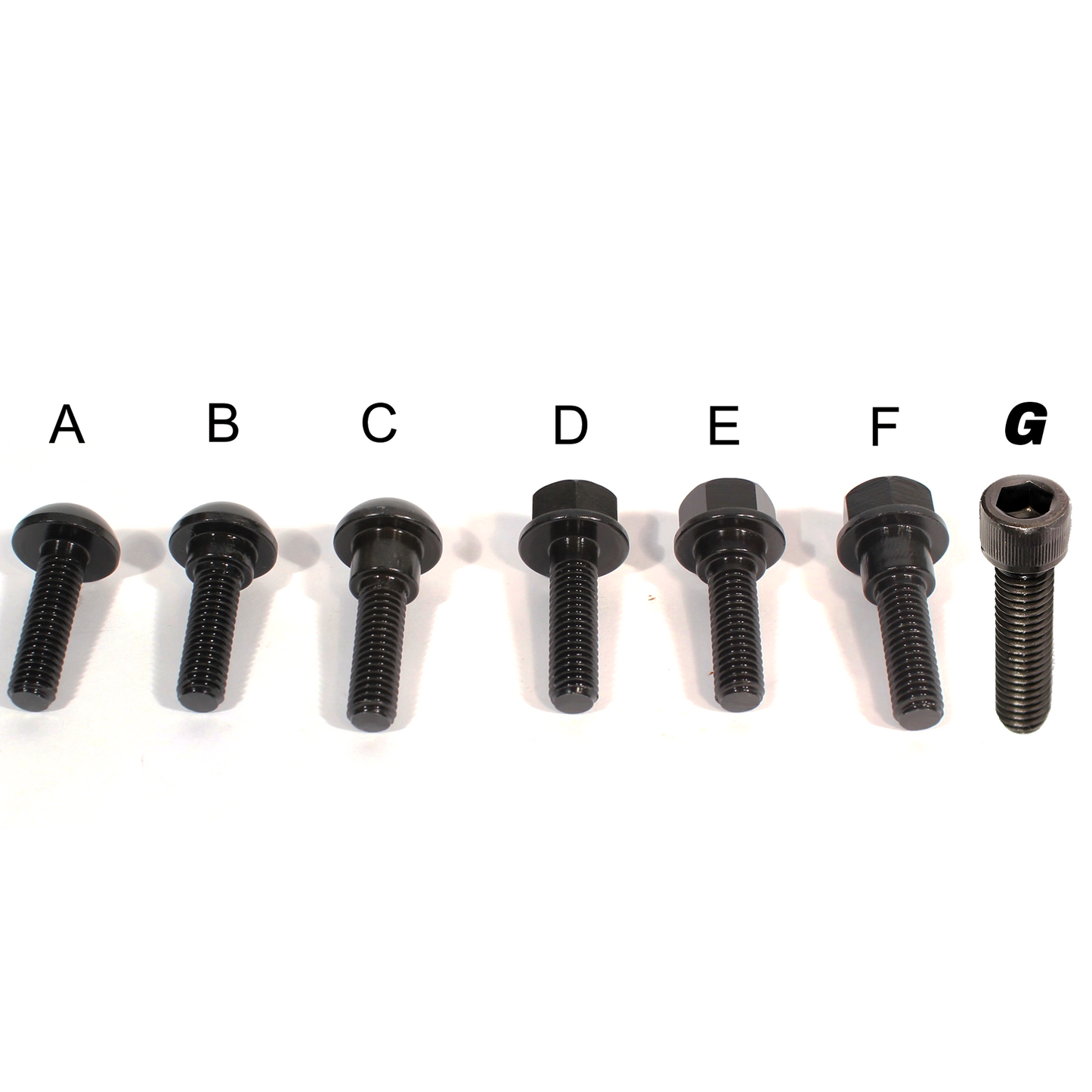

FEMALE 8MM BUTTON HEAD CHROMOLY BOLTS:

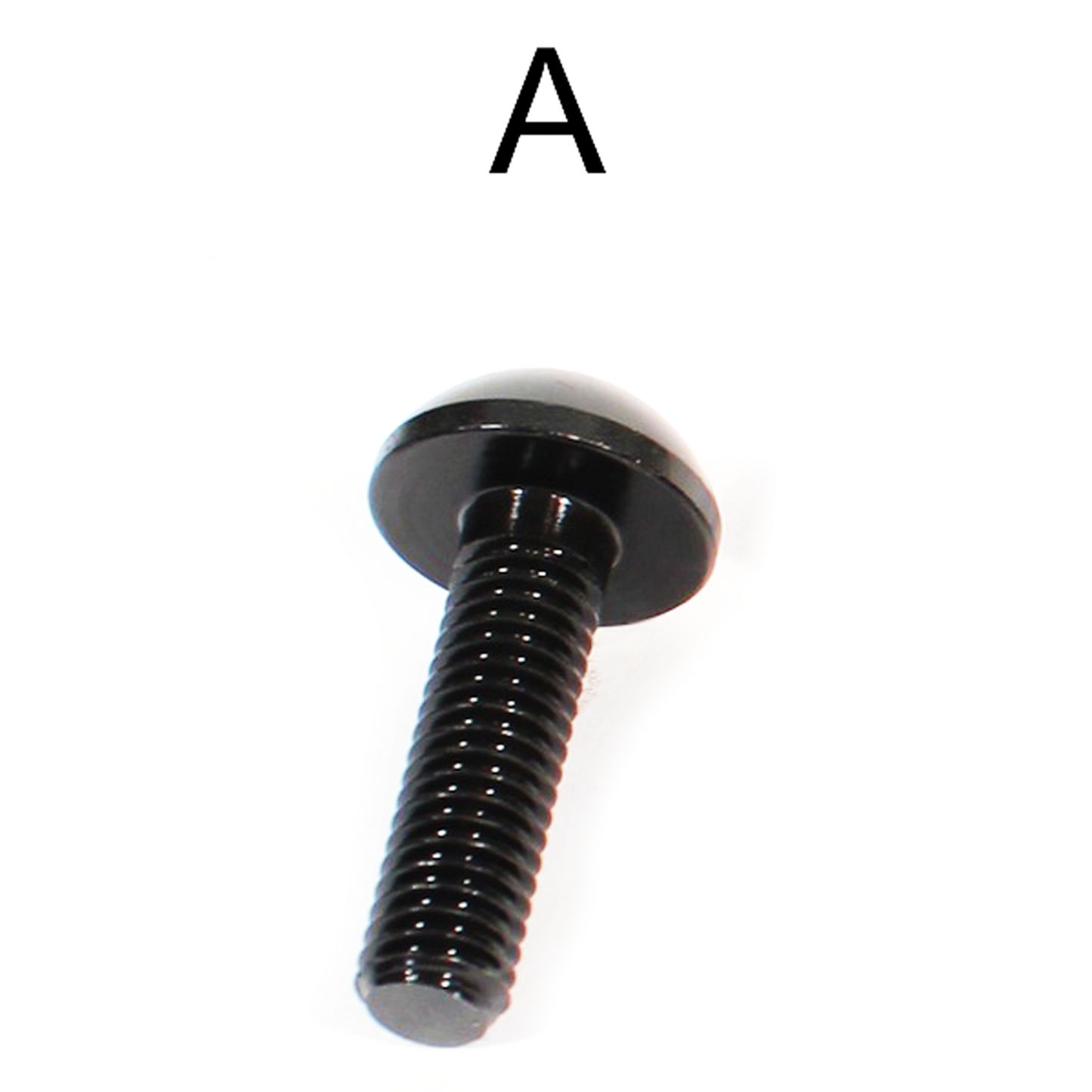

-A. Straight 3/8 bolt, will fit 3/8 drop outs.

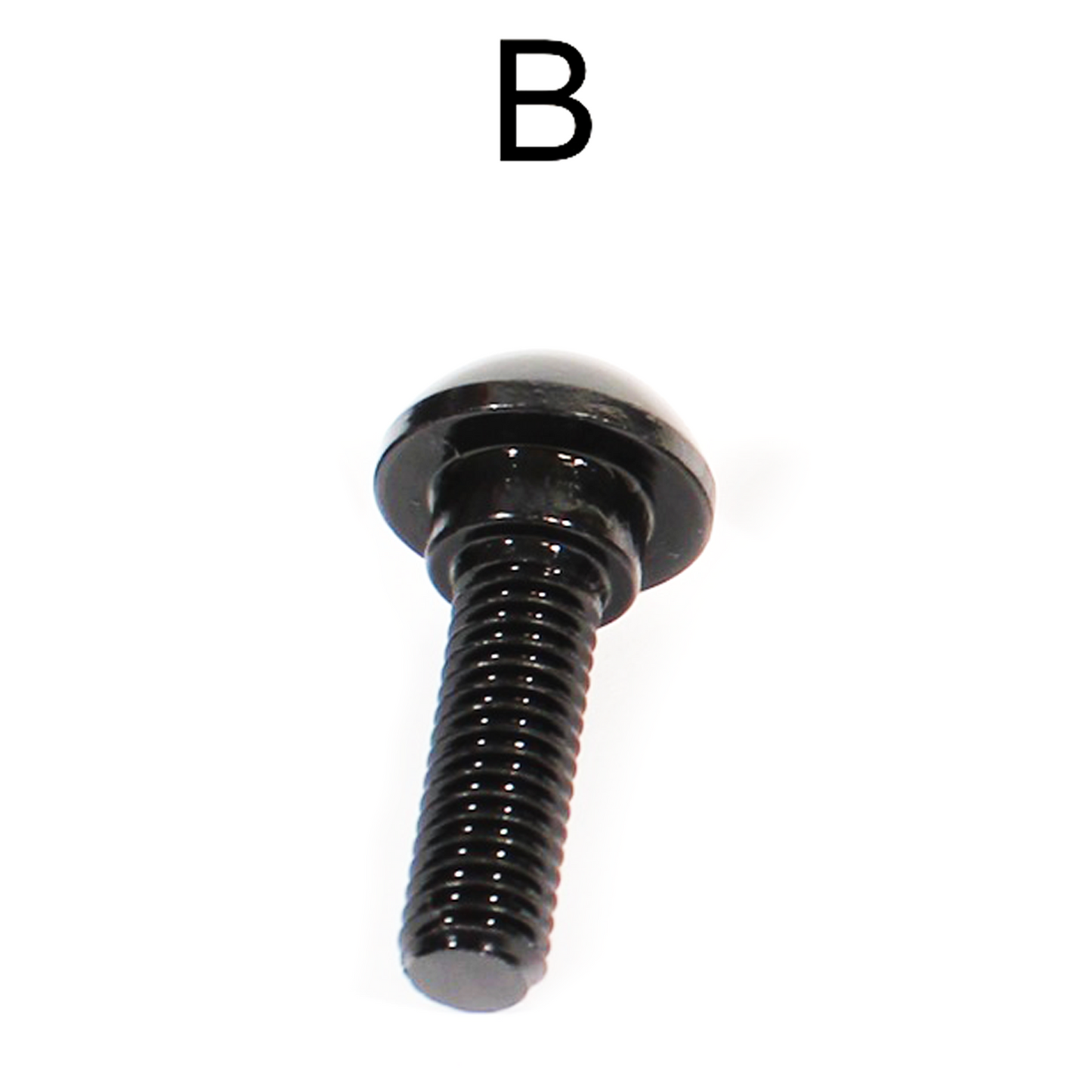

-B. Stepped 3/8 to 14mm dropouts version

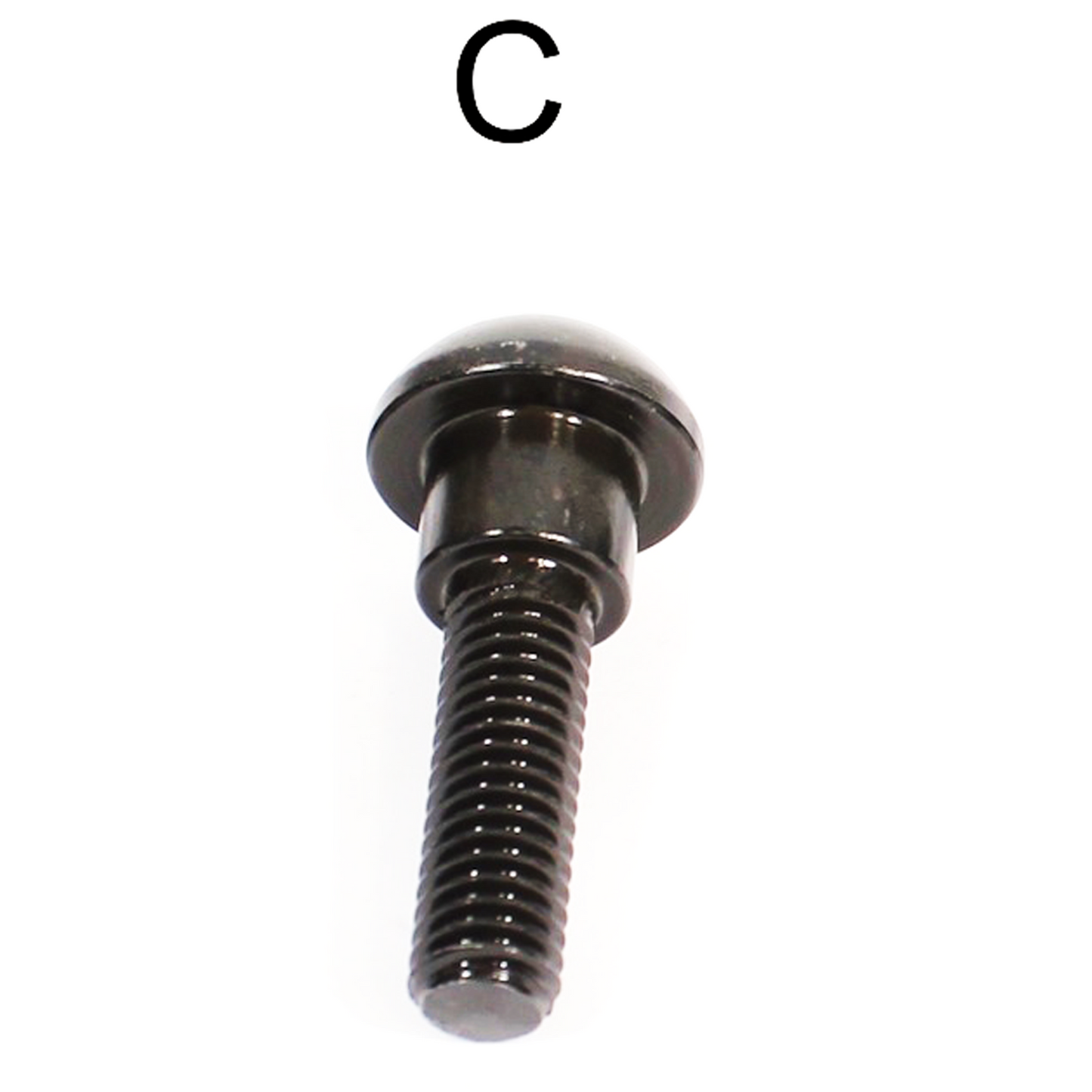

-C. The peg version. This bolt has a longer 14mm step section that’s long enough for both a 14mm peg as well as a 14mm dropout.
FEMALE 17MM HEX HEAD CHROMOLY BOLTS *ALSO HAS 8MM ALLEN HOLE ON TOP.*:

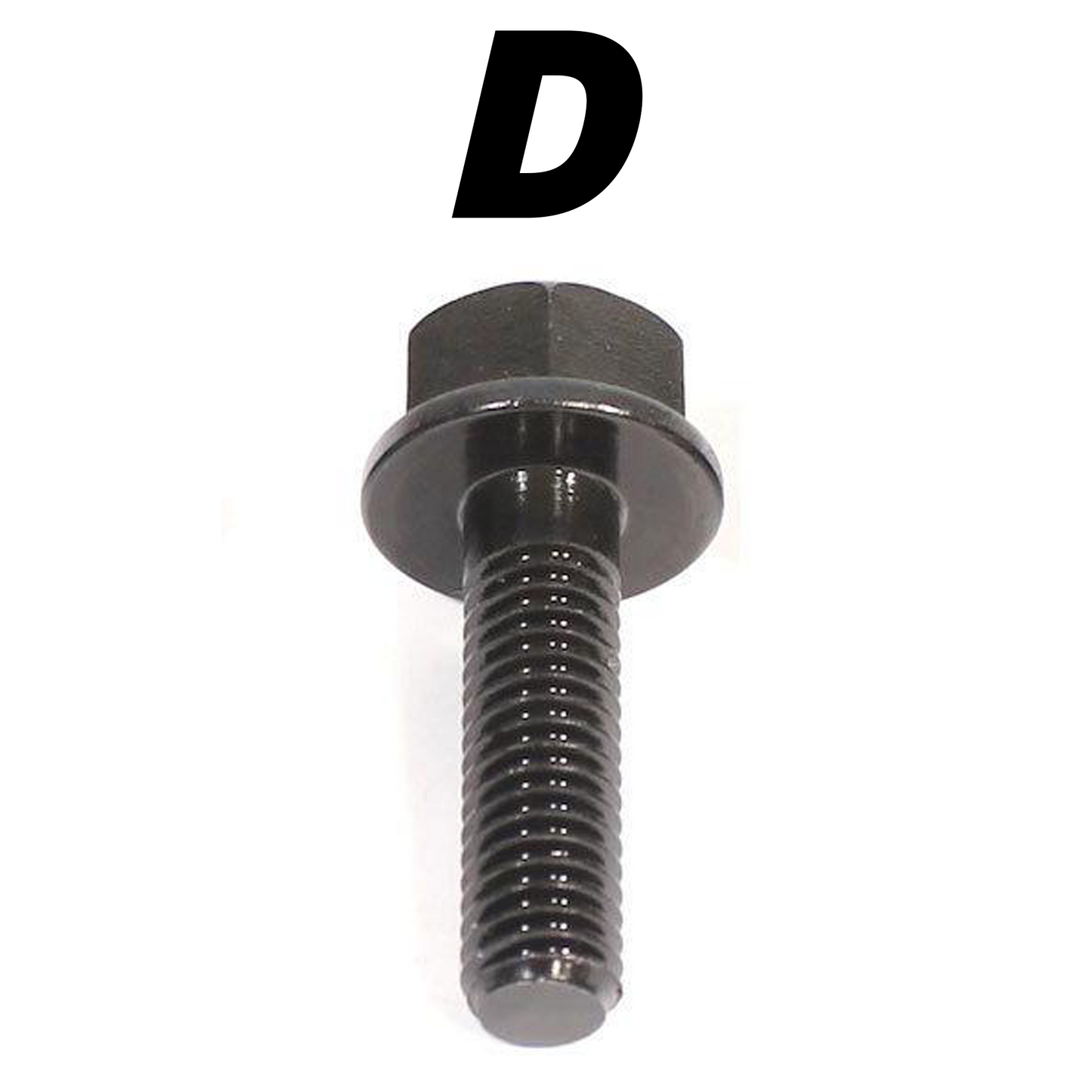

-D. Straight 3/8 bolt, will fit 3/8 drop outs.

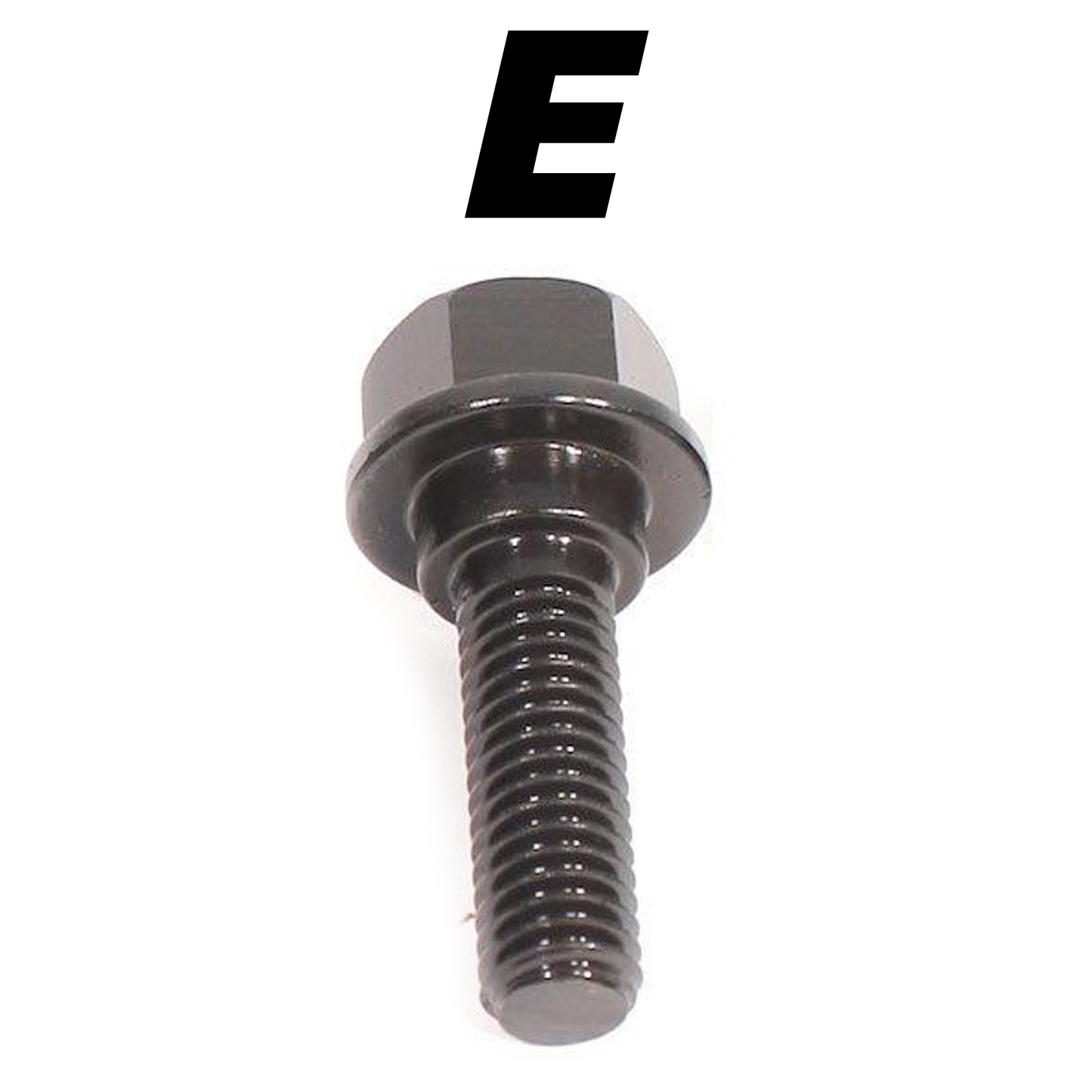

-E. Stepped 3/8 to 14mm dropouts version

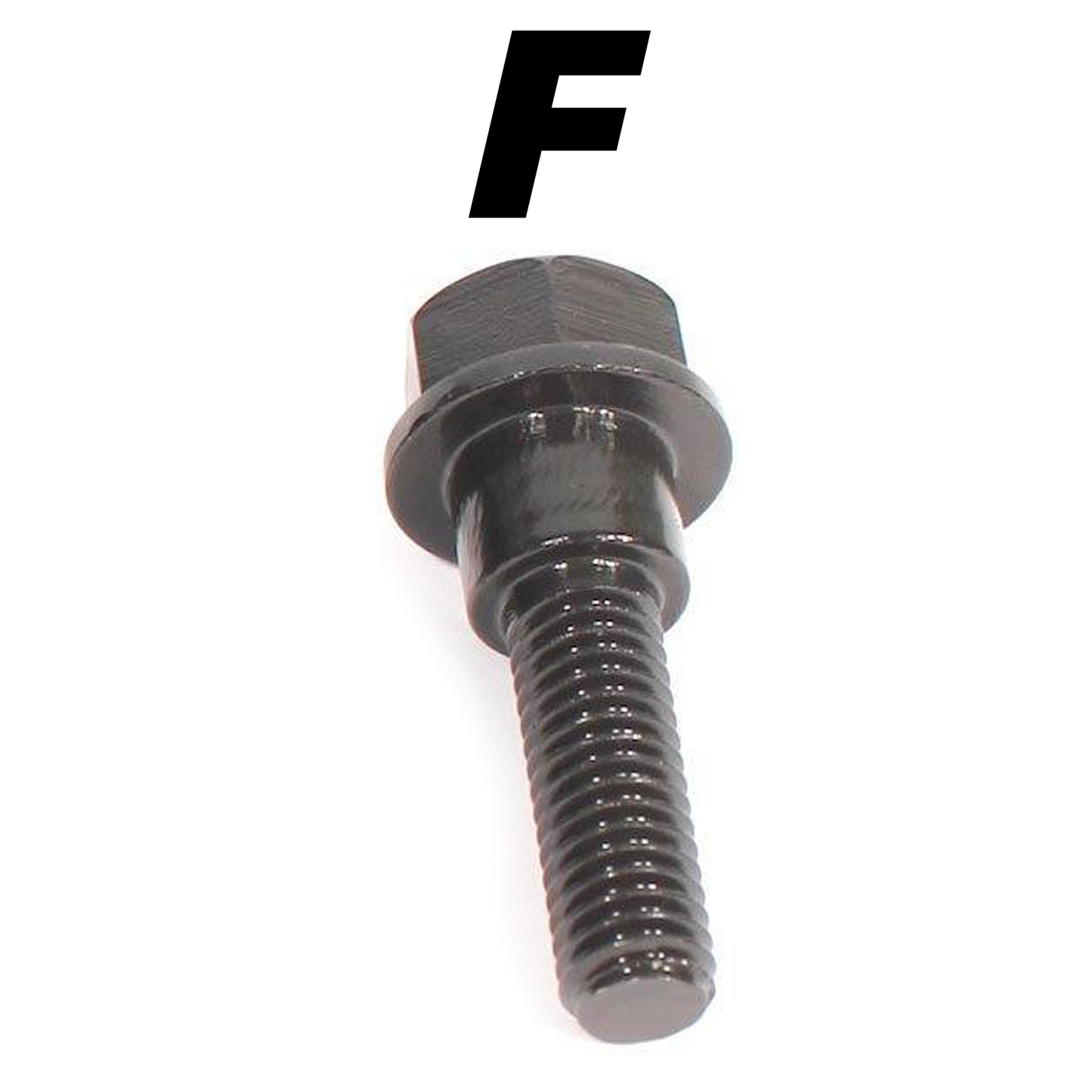

-F. The peg version. This bolt has a longer 14mm step section that’s long enough for both a 14mm peg as well as a 14mm dropout.
FEMALE Volcano Cone Chromoly bolts *No volcano washers included* *8mm head*:

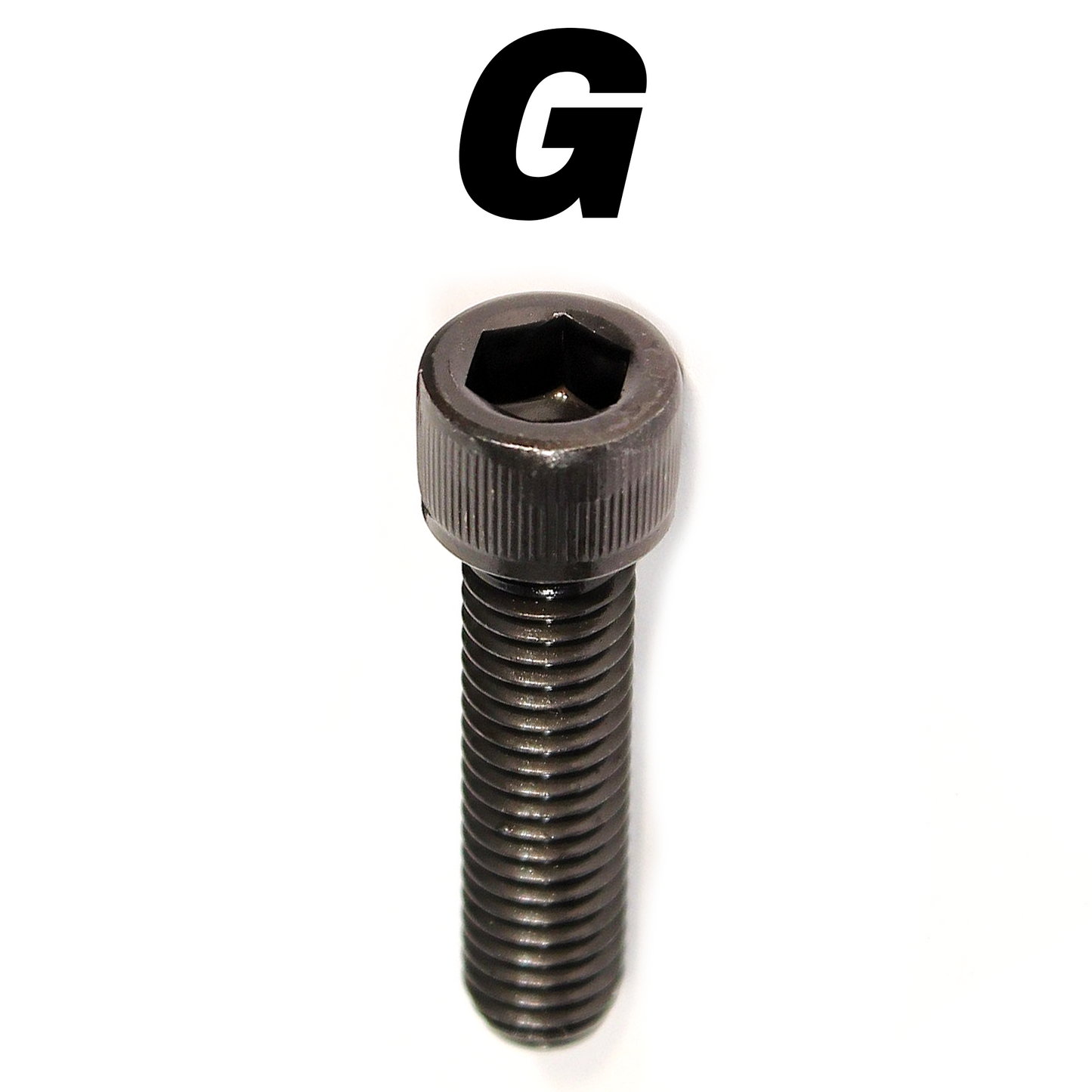

-G 3/8 Volcano cone bolt for 3/8 drop outs.

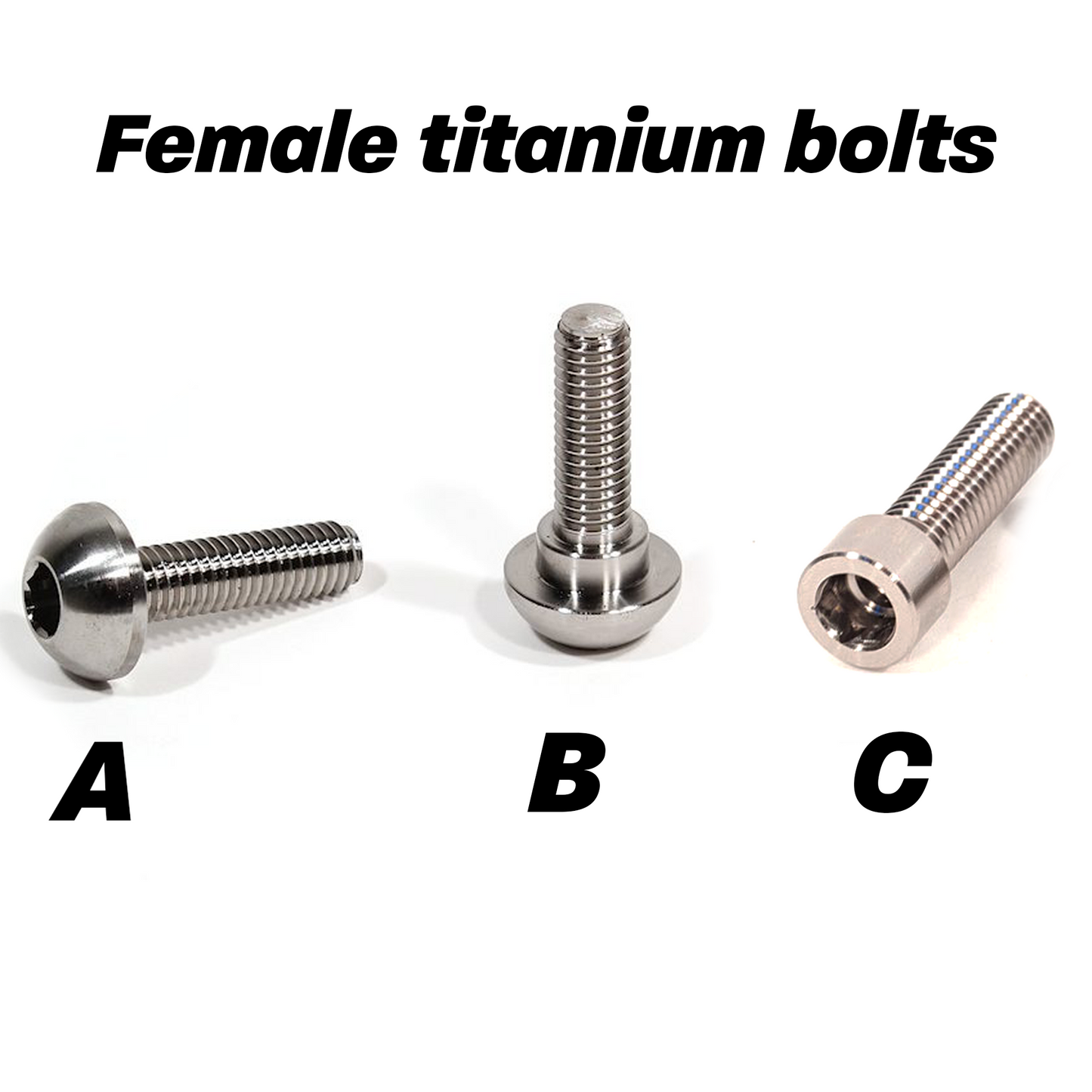

FEMALE Titanium 8mm head axle bolts:

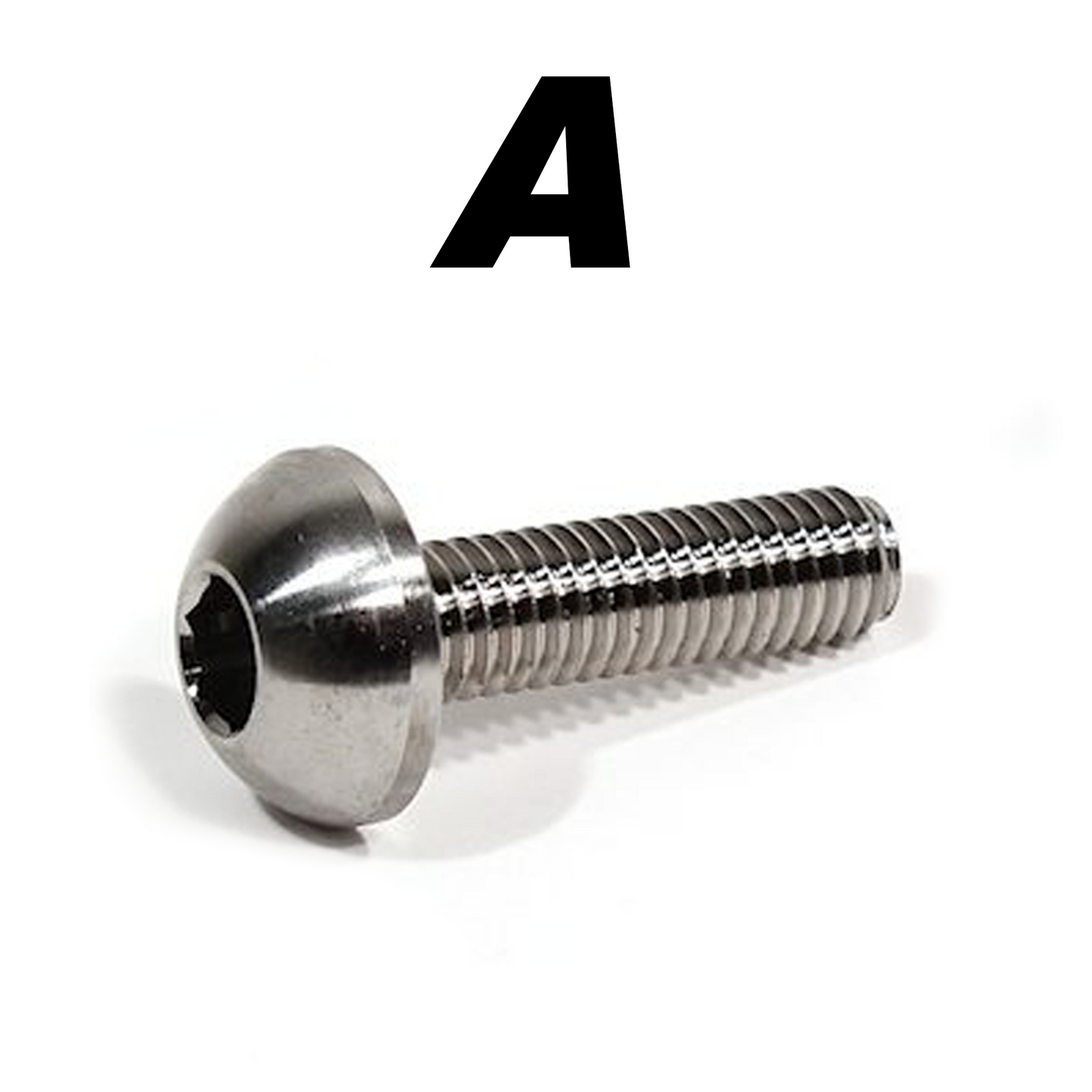

-A. 3/8 Button head for 3/8 drop outs.

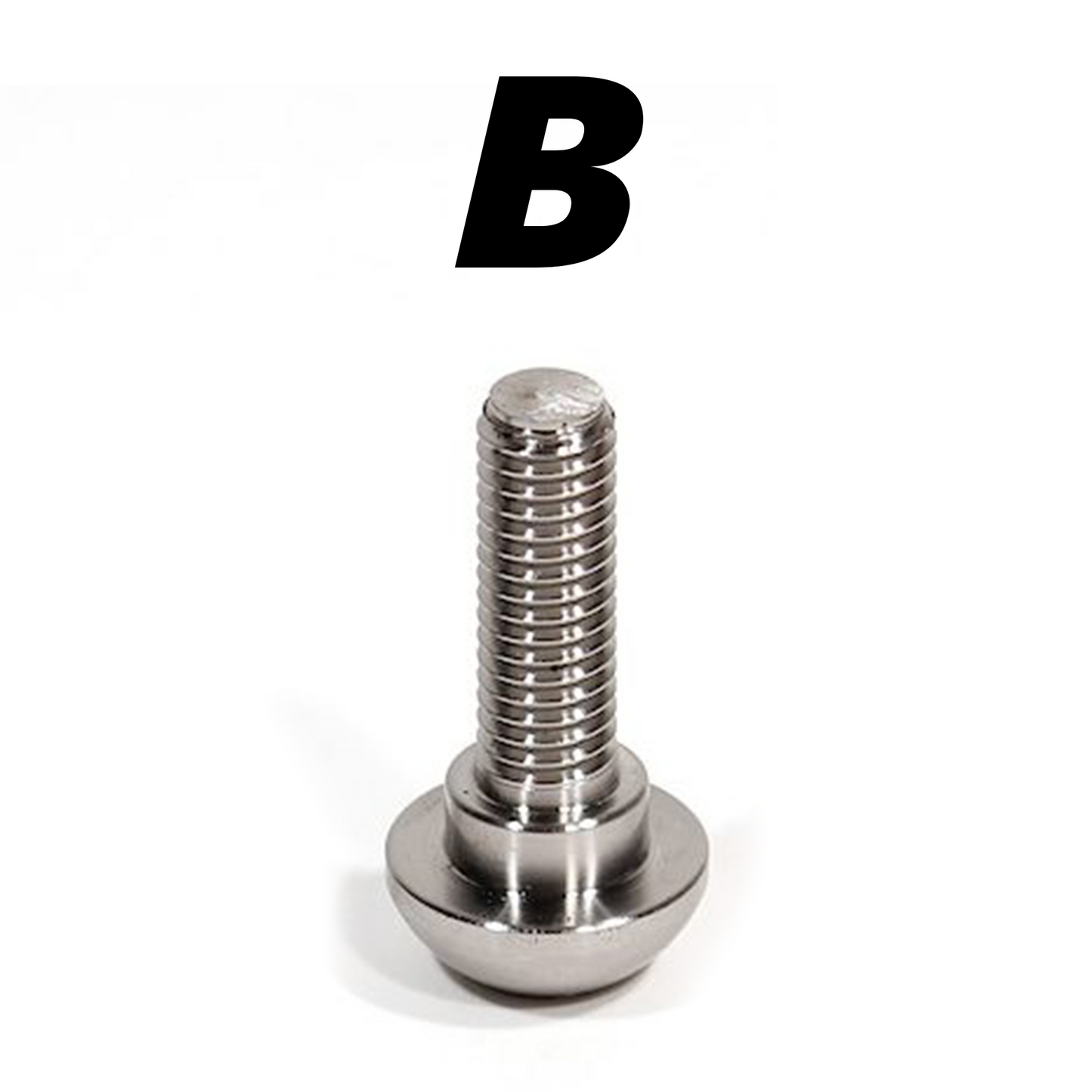

-B. 3/8 to 14mm Button head for 14mm drop outs.

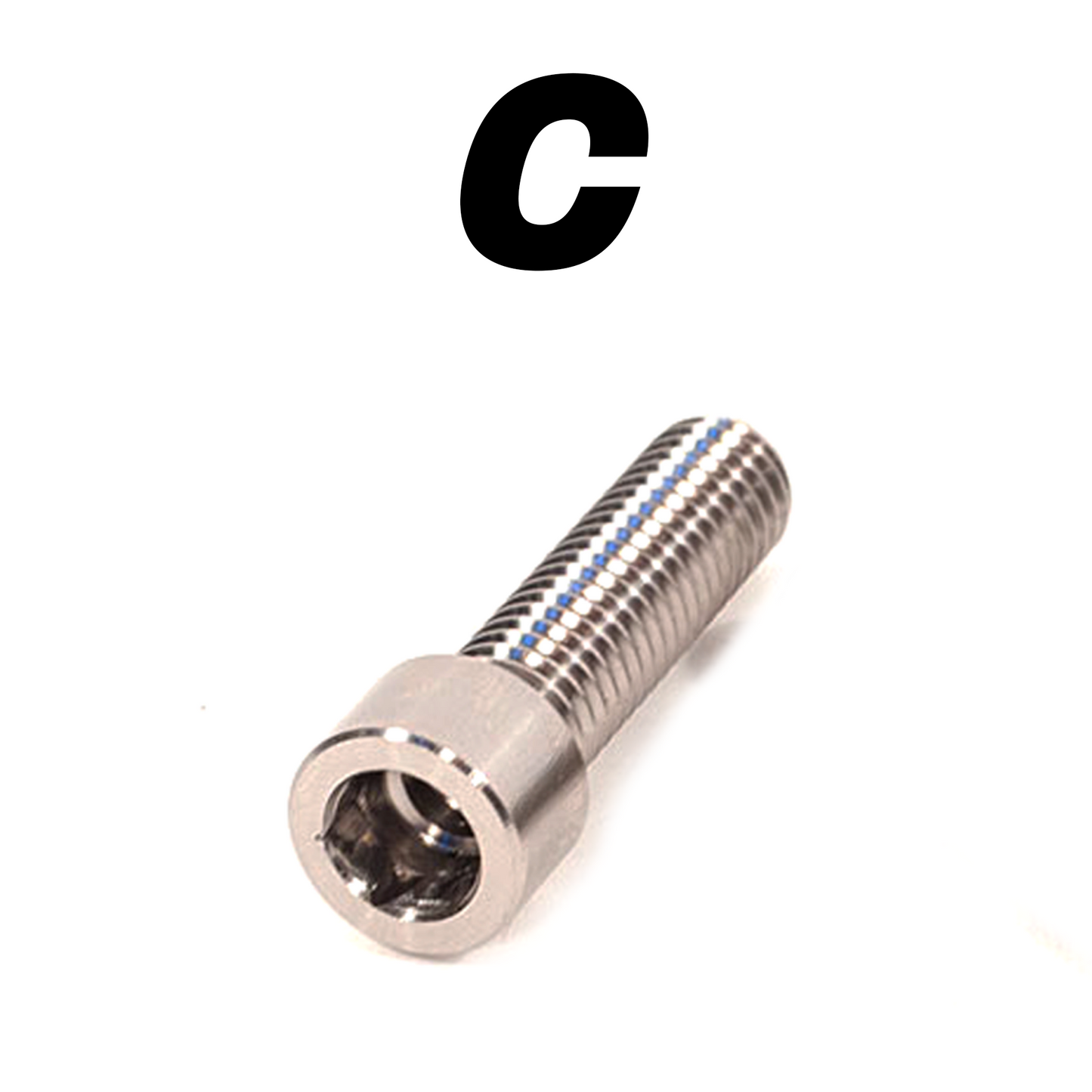

-C. 3/8 Volcano cone bolt for 3/8 drop outs.

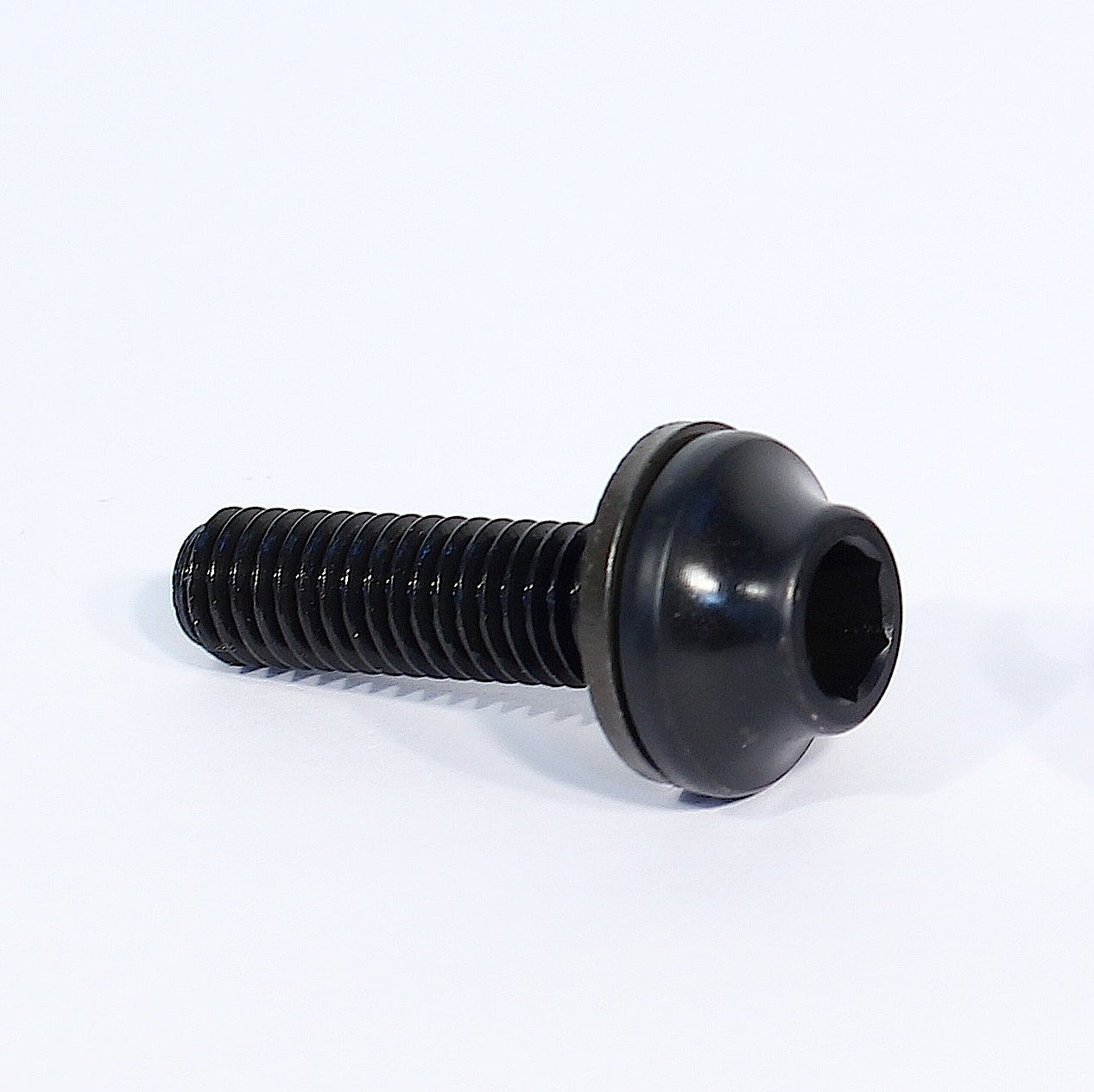

FEMALE Madera 8mm head axle bolts:
-H. 3/8 bolts for 3/8 drop outs (work on mini & elite axles too).
FEMALE AC-2 Hub Bolts *Only for AC-2 Hubs*
-I. 15mm AC-2 hub bolts.
-J. 20mm AC-2 hub bolts.

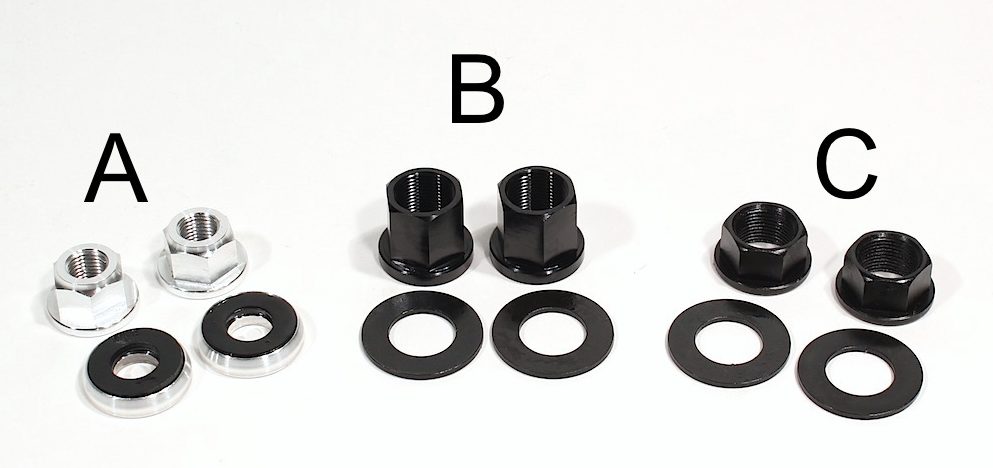

MALE Axle Nut & Washers:

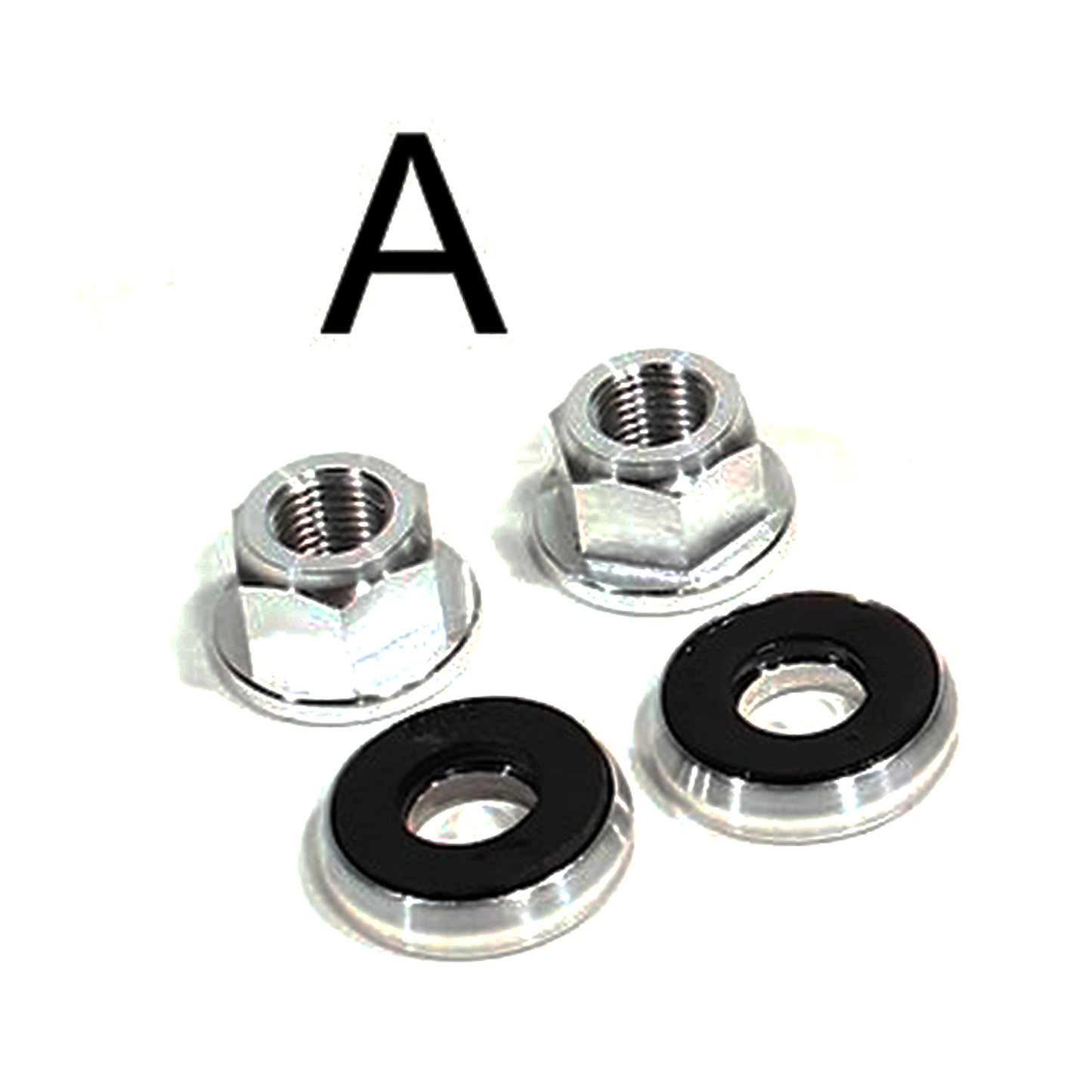

-A. 3/8 axle Aluminum

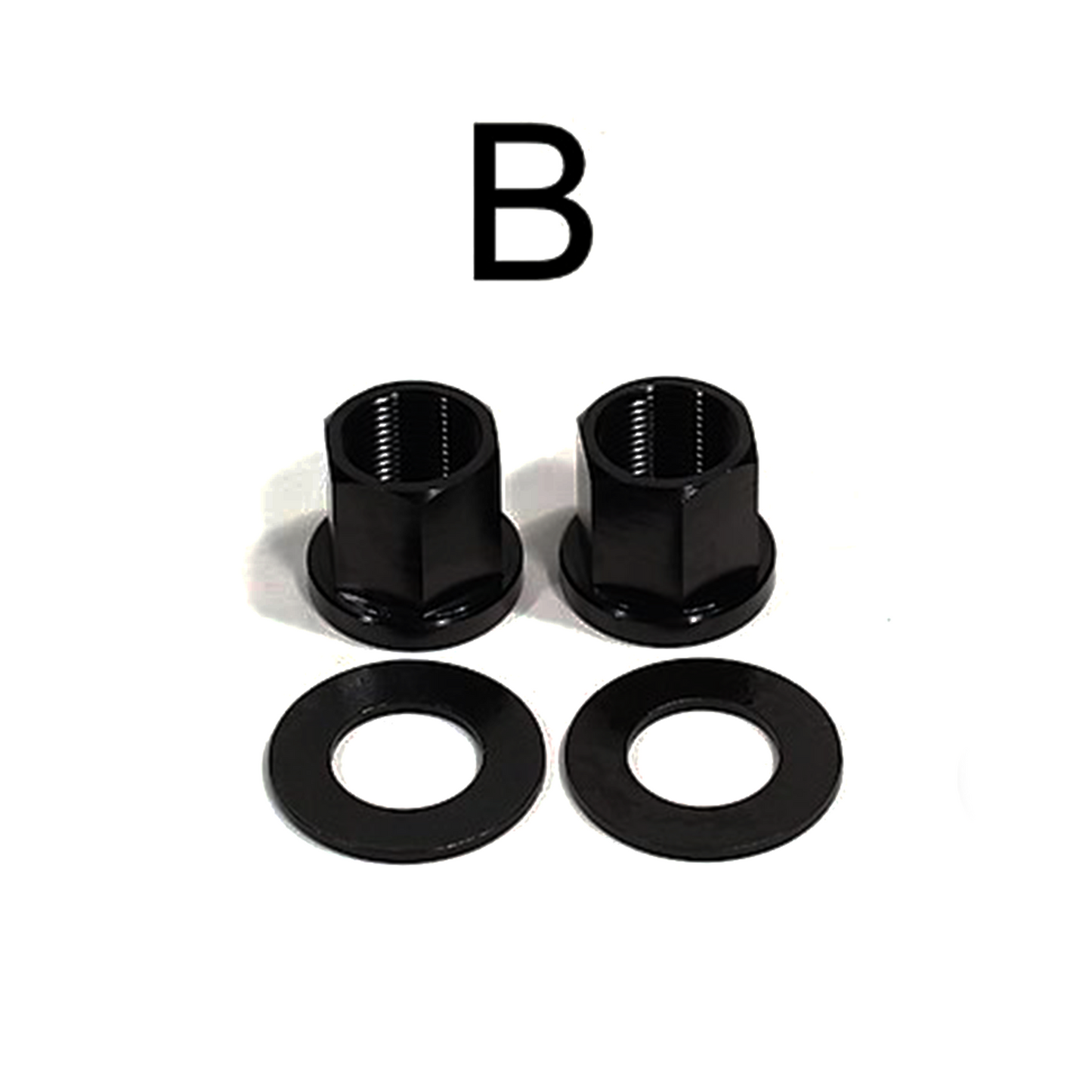

-B. 14mm Aluminum

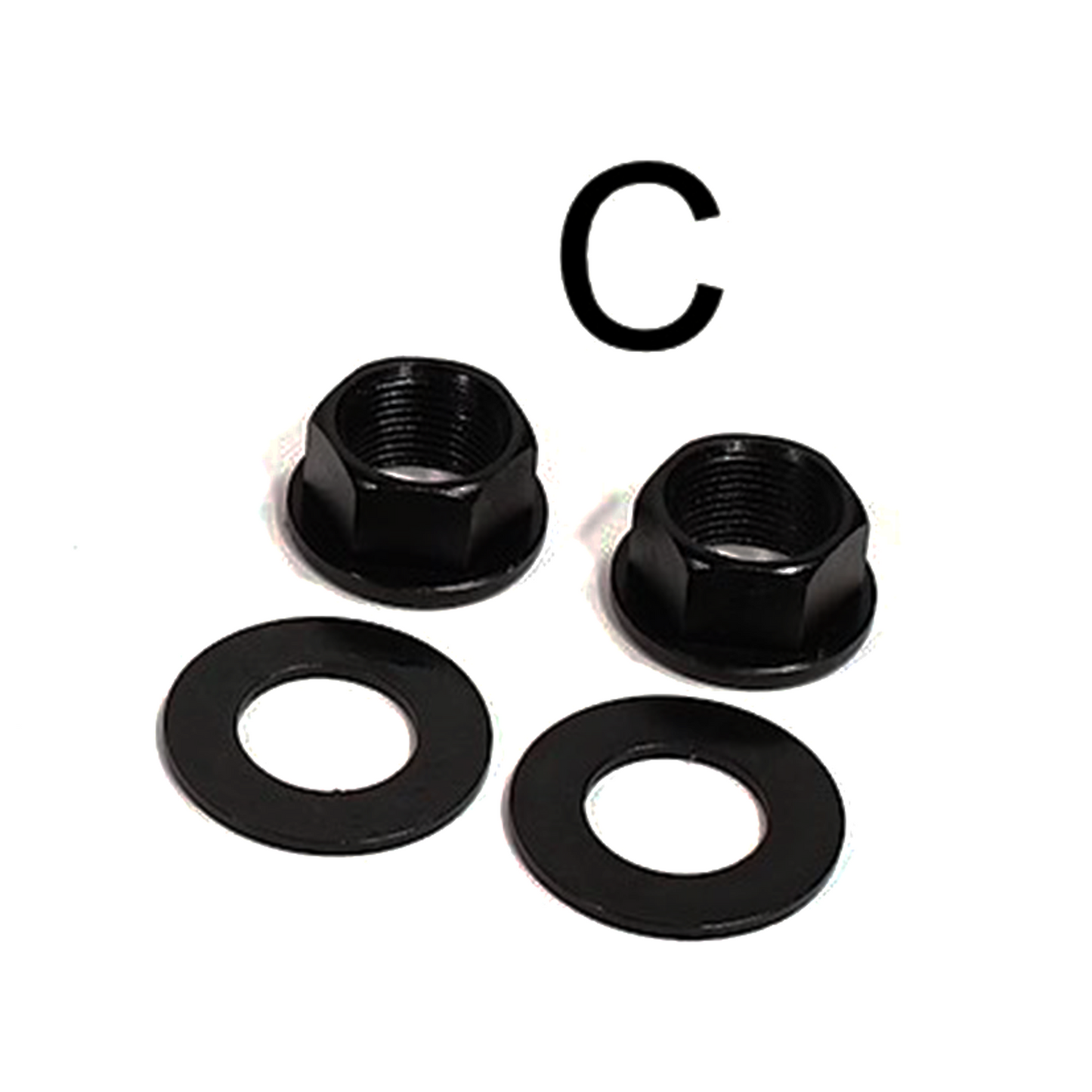

-C. 14mm Chromoly
HUB AXLE 14MM JAM NUT SETS:
- Replacement heat treated Chromoly Jam Nuts for Profile 14mm cassette hub axles and 14mm front hub axles. Can be used on Mini, Totem, Elite, Z Coaster®, Track or Madera hubs with a 14mm axle.
