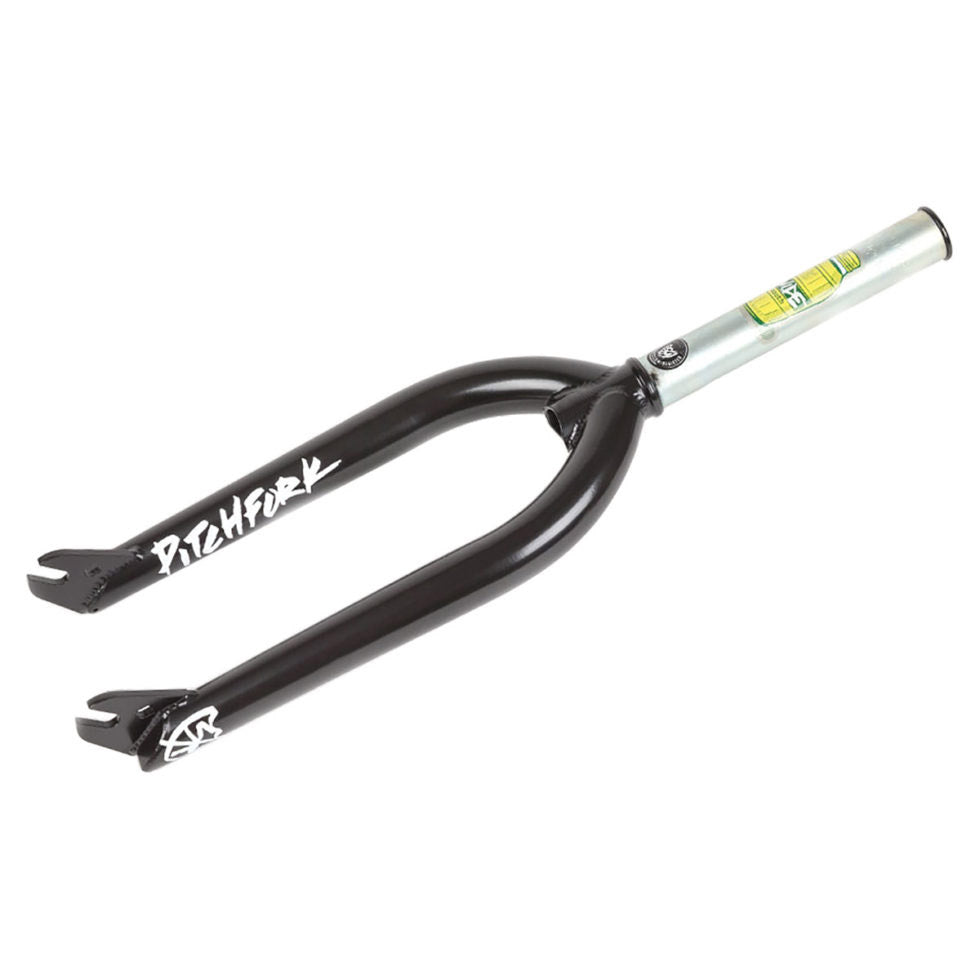

S&M Widemouth 20" Pitch Forks 26mm offset
S&M Widemouth 20" Pitch Forks 26mm offset
S&M
Regular price
$ 209.95
Regular price
Sale price
$ 209.95
Unit price
/
per
Couldn't load pickup availability
The tried and true S&M Widemouth fork offers plenty of tire clearance in a steeper 26mm offset for a more responsive front end. Less fork offset creates a shorter overall wheelbase for more responsive handling of your entire bike. Nose wheelies, pivots and a balance point that’s easier to reach. Believe and achieve. For 20 wheel sizes.
| LEGS | Double Butted, Tapered, 4130 CrMo |
| DROPOUTS | Laser Cut 3/8″ Slot |
| STEERER TUBE | Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert |
| STEERER TUBE LENGTH | 173mm |
| COMPRESSION | M24 X 1.5 Thread – 6mm Allen Slot |
| AXLE TO CROWN HEIGHT | 20″ – 320mm |
| OFFSET | 26mm |
| WEIGHT | 1.99 lb (.90 kg) 20″ |
| HEAT TREAT | 4Q Baked Post-Weld |
| TIRE CLEARANCE | MAX CLEARANCE 2.45″ |
