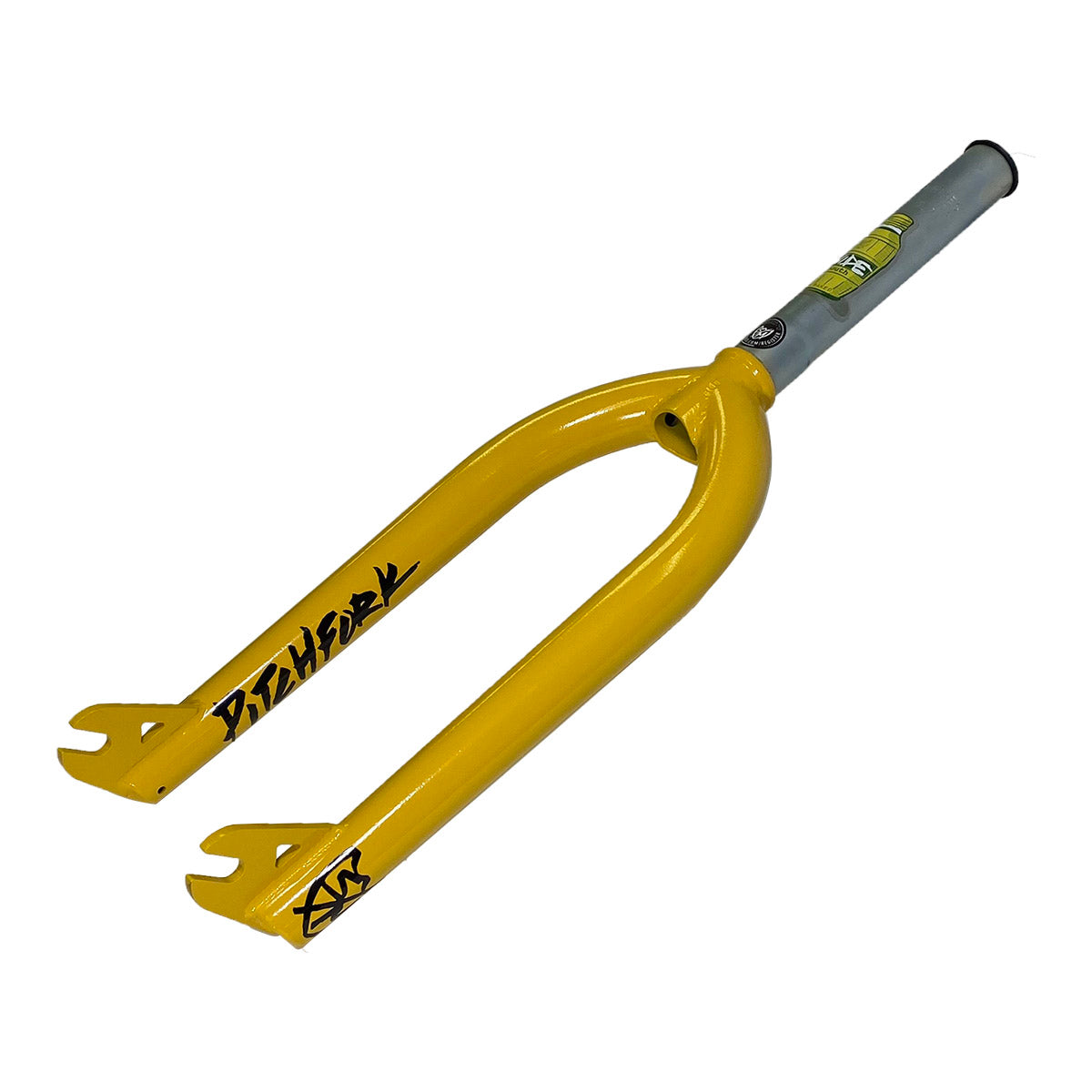

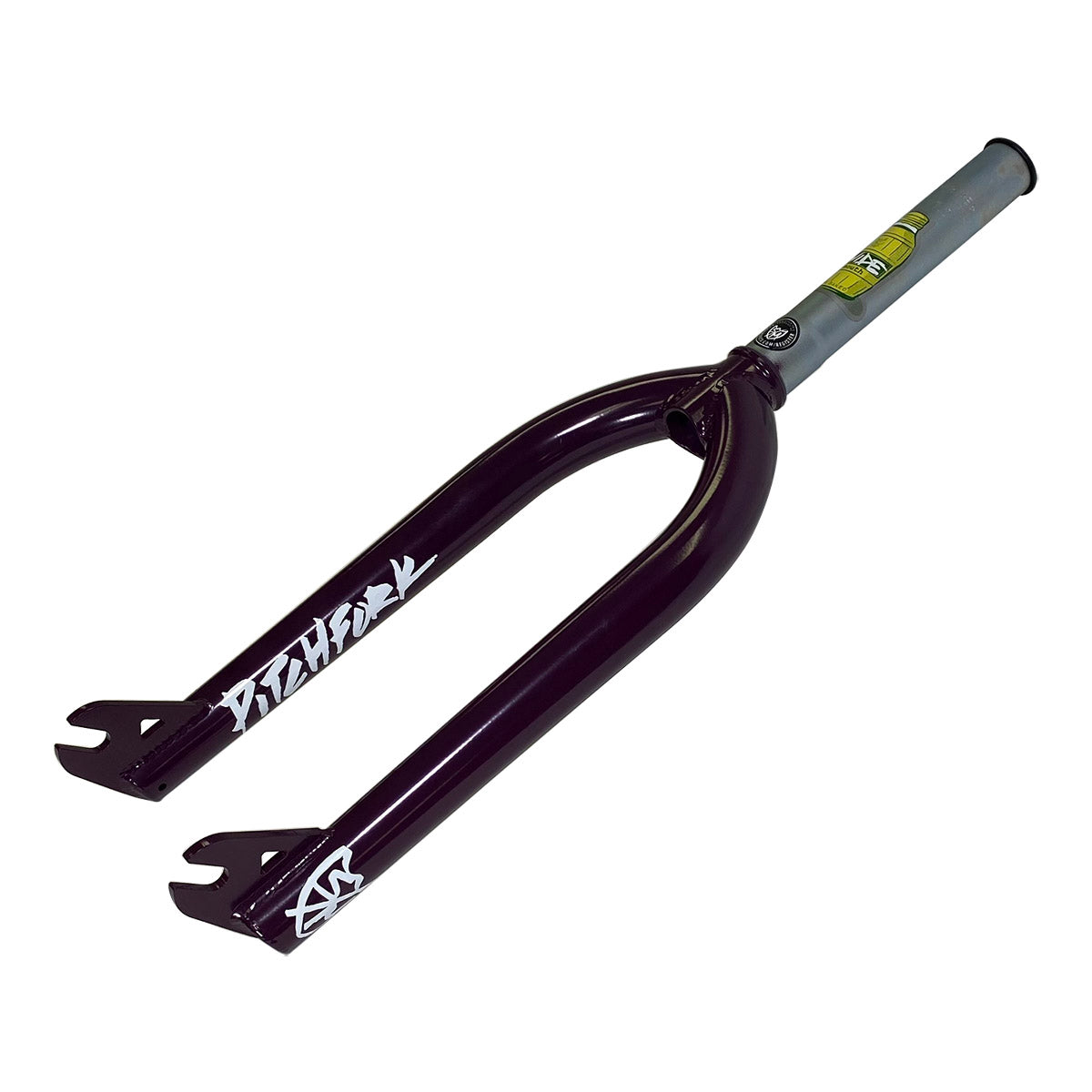

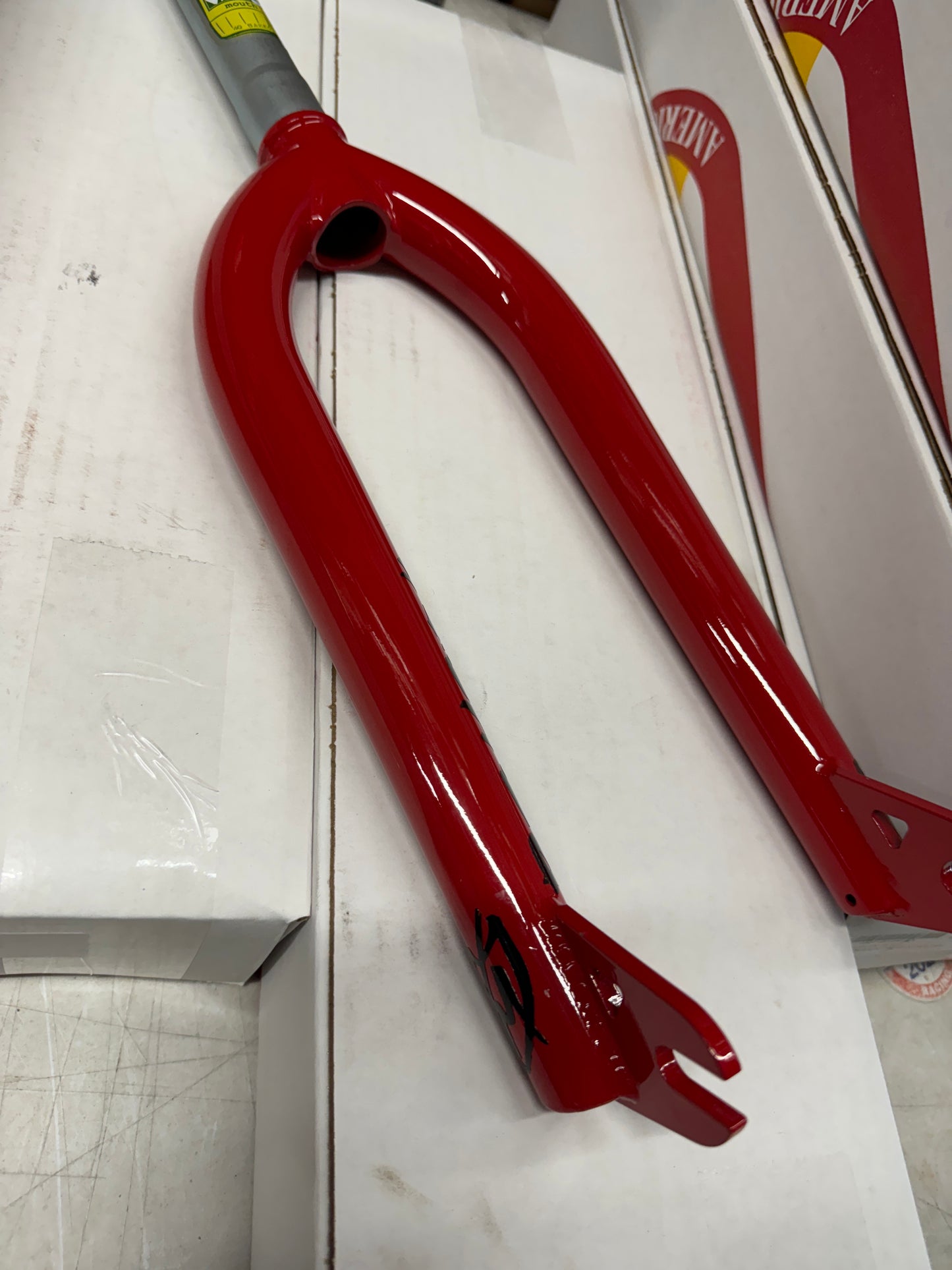

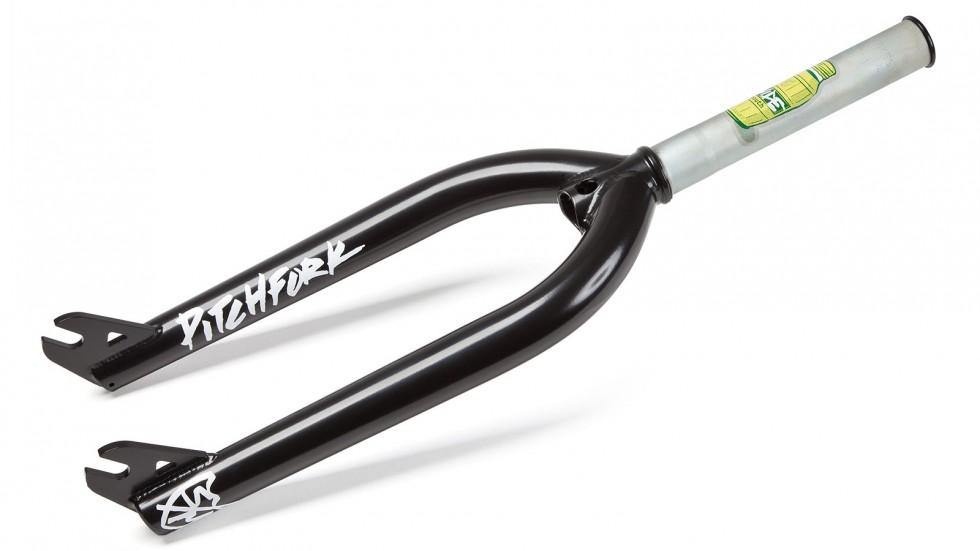

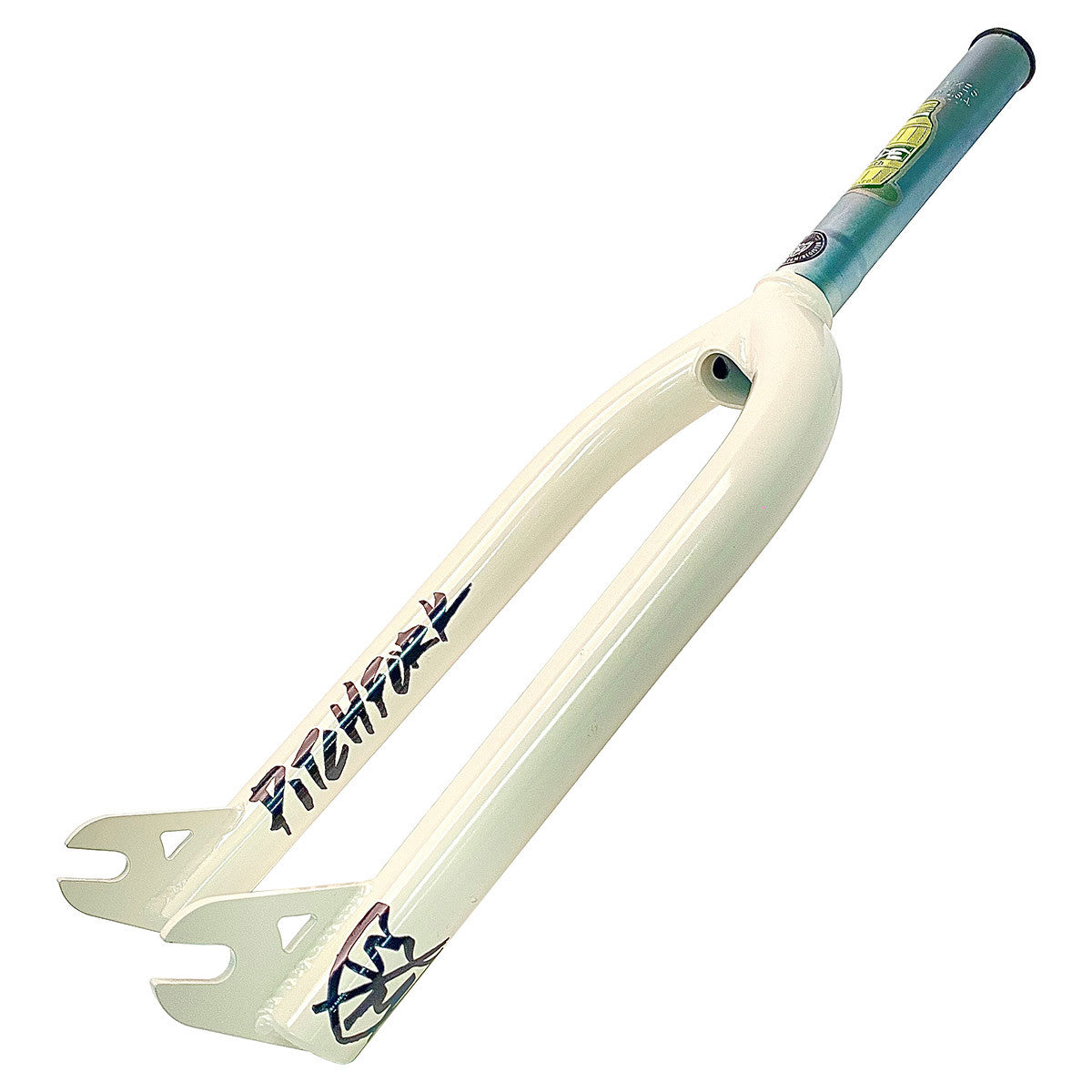

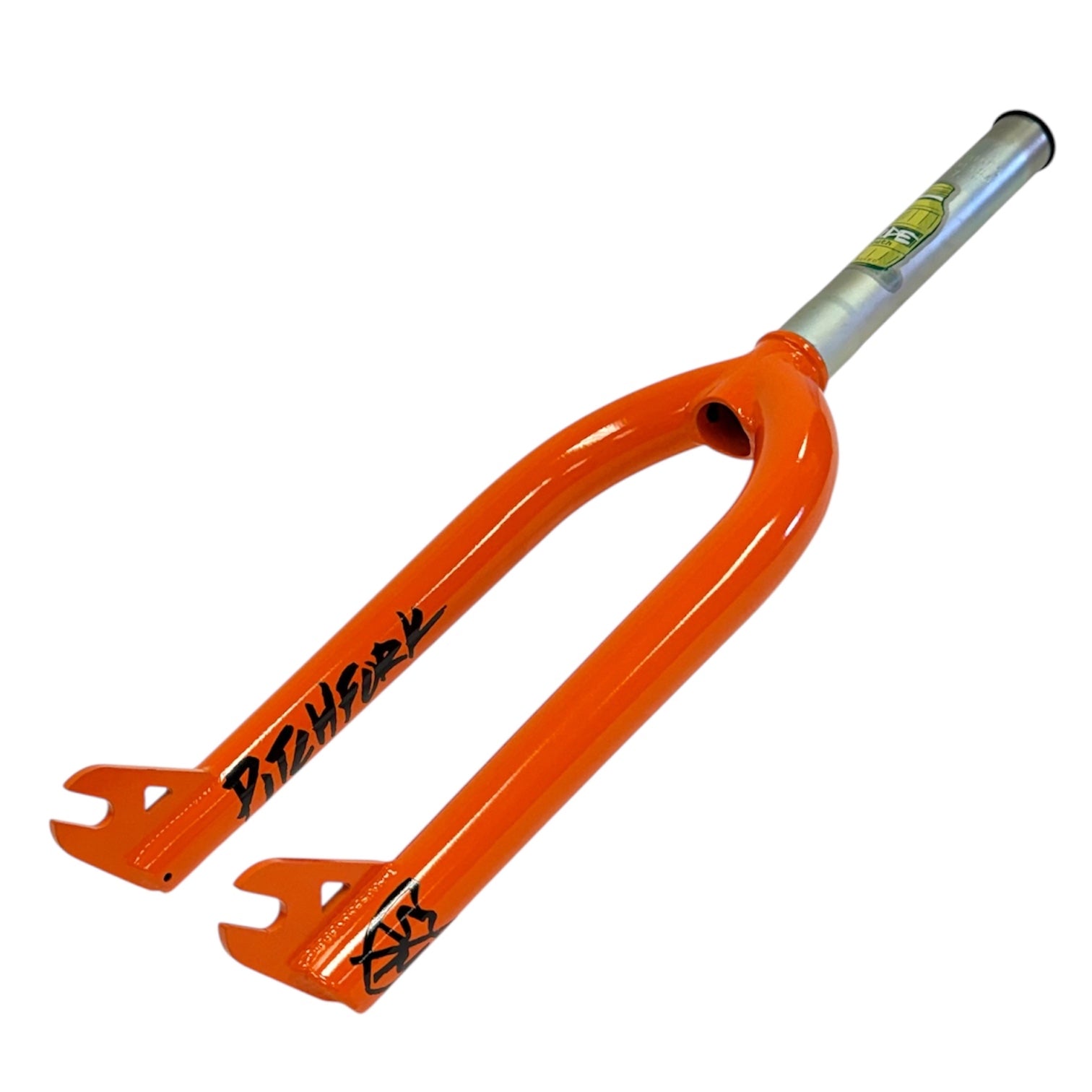

S&M Widemouth 20" Pitch Forks
S&M Widemouth 20" Pitch Forks
S&M
Regular price
$ 209.95
Regular price
Sale price
$ 209.95
Unit price
/
per
Couldn't load pickup availability
The Widemouth fork features everything you know and trust from S&M forks–the finest quality construction and made to withstand the hardest riding you can dish out. The Widemouth name comes from a larger curve radius that creates increased clearance for the larger tire sizes found on modern bikes. A traditional 33mm offset provides stability and control on all terrains and at any speed. Available for 20 and 22″ wheel sizes.
LEGS | Double Butted, Tapered, 4130 CrMo |
DROPOUTS | Laser Cut 3/8″ Slot |
STEERER TUBE | Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert |
STEERER TUBE LENGTH | 173mm |
COMPRESSION | M24 X 1.5 Thread – 6mm Allen Slot |
AXLE TO CROWN HEIGHT | 20″ – 320mm 22″ – 345.9mm |
OFFSET | 33mm |
WEIGHT | 1.99 lb (.90 kg) 20″ 2.35 lb (1.06 kg) 22″ |
HEAT TREAT | 4Q Baked Post-Weld |
TIRE CLEARANCE | 2.45″ |
Share
![S&M Widemouth 20" Pitch Forks - Powers Bike Shop](http://powersbmx.com/cdn/shop/products/WideMouth_20_MatteBlk-980x551.jpg?v=1617804390&width=1445)

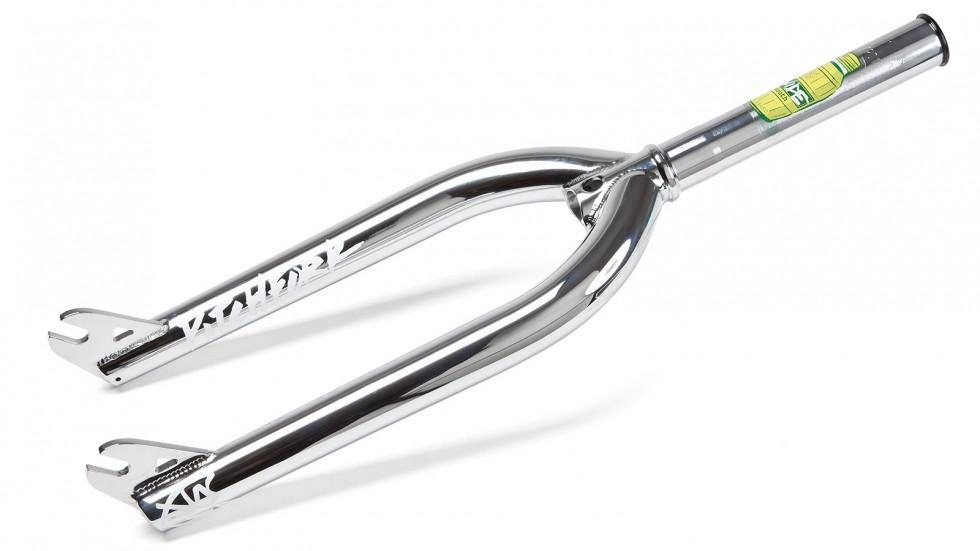

![S&M Widemouth 20" Pitch Forks - Powers Bike Shop](http://powersbmx.com/cdn/shop/products/WideMouth_20_Chrome-980x551.jpg?v=1617804388&width=1445)

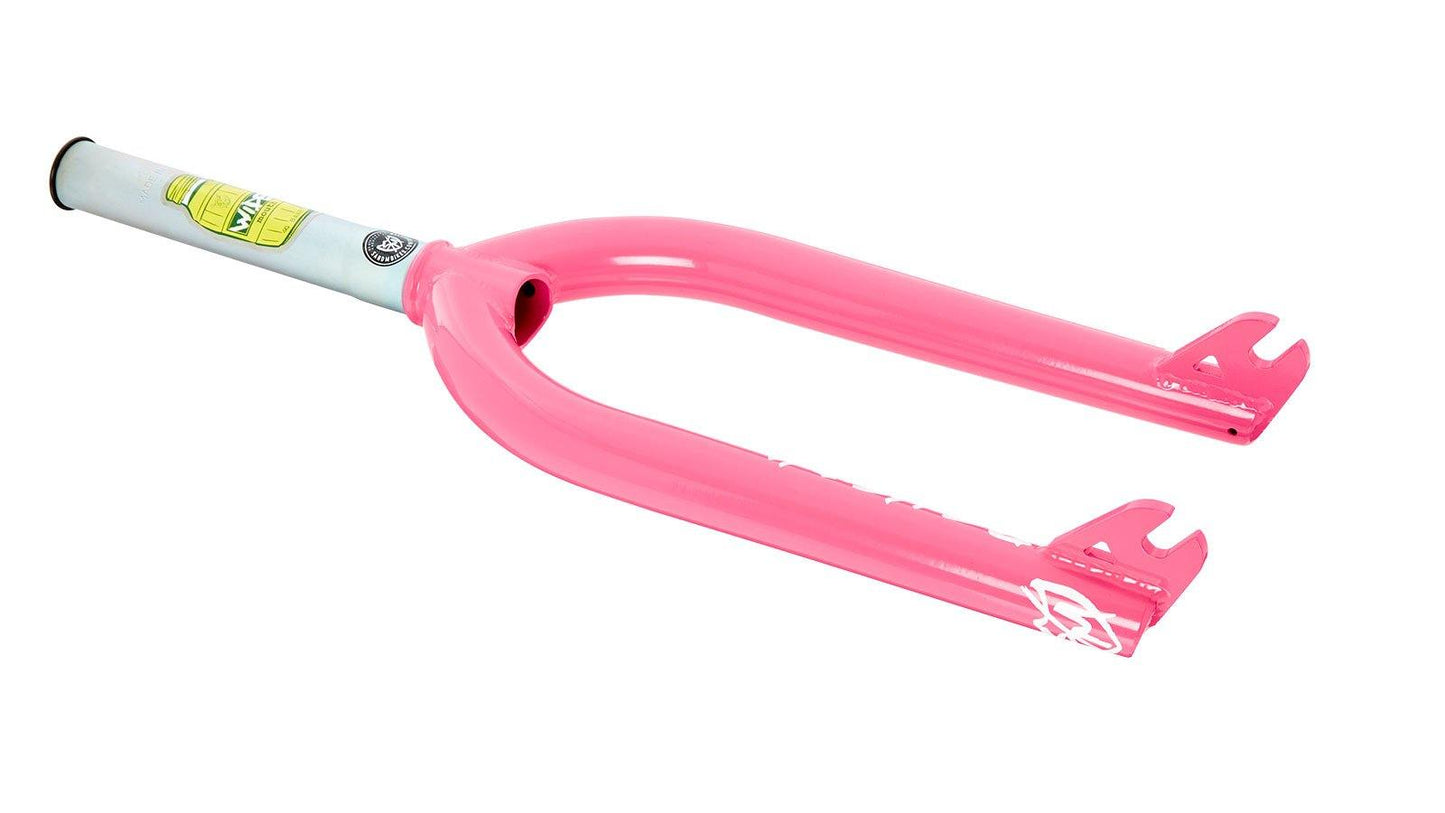

![S&M Widemouth 20" Pitch Forks - Powers Bike Shop](http://powersbmx.com/cdn/shop/products/02-PFT-WM-PINK_C.jpg?v=1617804392&width=1445)
![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/products/02-PFT-WM-TAN_1.jpg?v=1655924670&width=1445)

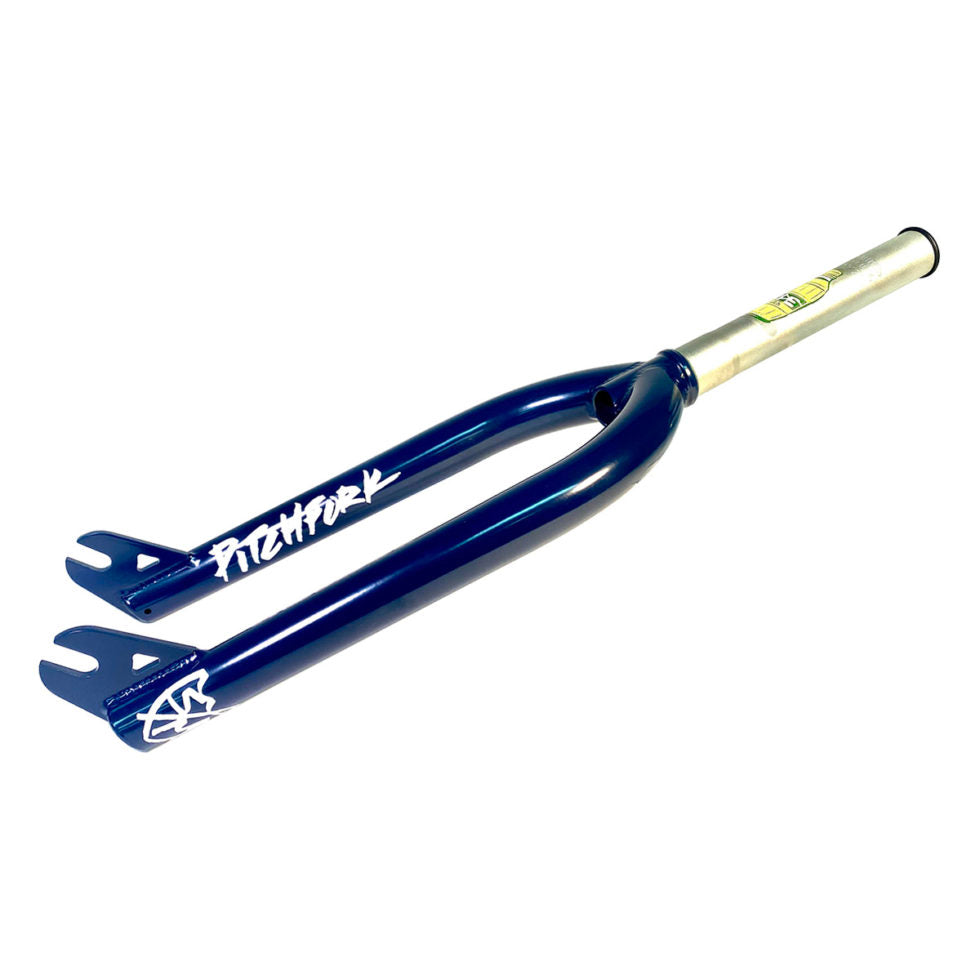

![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/products/02-PFT-WM-BLUGRV_1-980x980.jpg?v=1666209061&width=1445)
![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/products/02-PFT-WM-BLUGRV_1-980x980_5cad3751-690f-4357-8a49-1ce028abf03c.jpg?v=1666209071&width=1445)

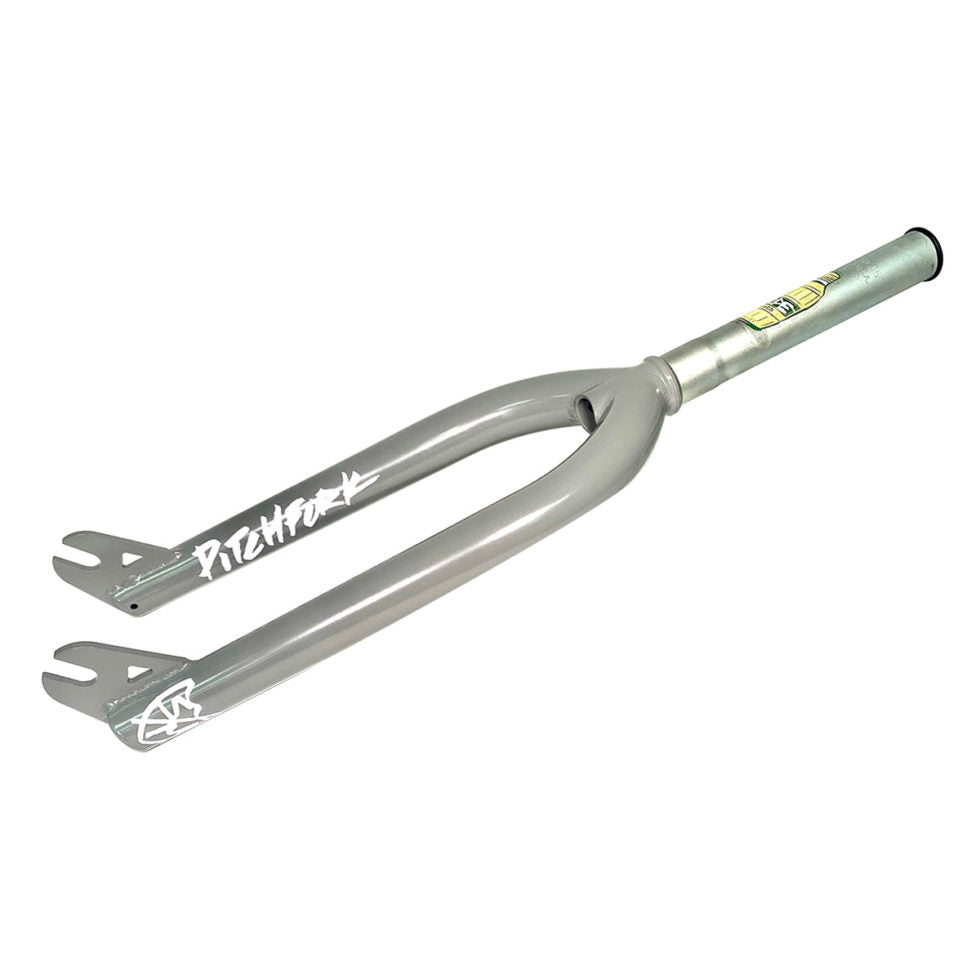

![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/products/02-PFT-WM-GNSMK_1-980x980.jpg?v=1666209079&width=1445)

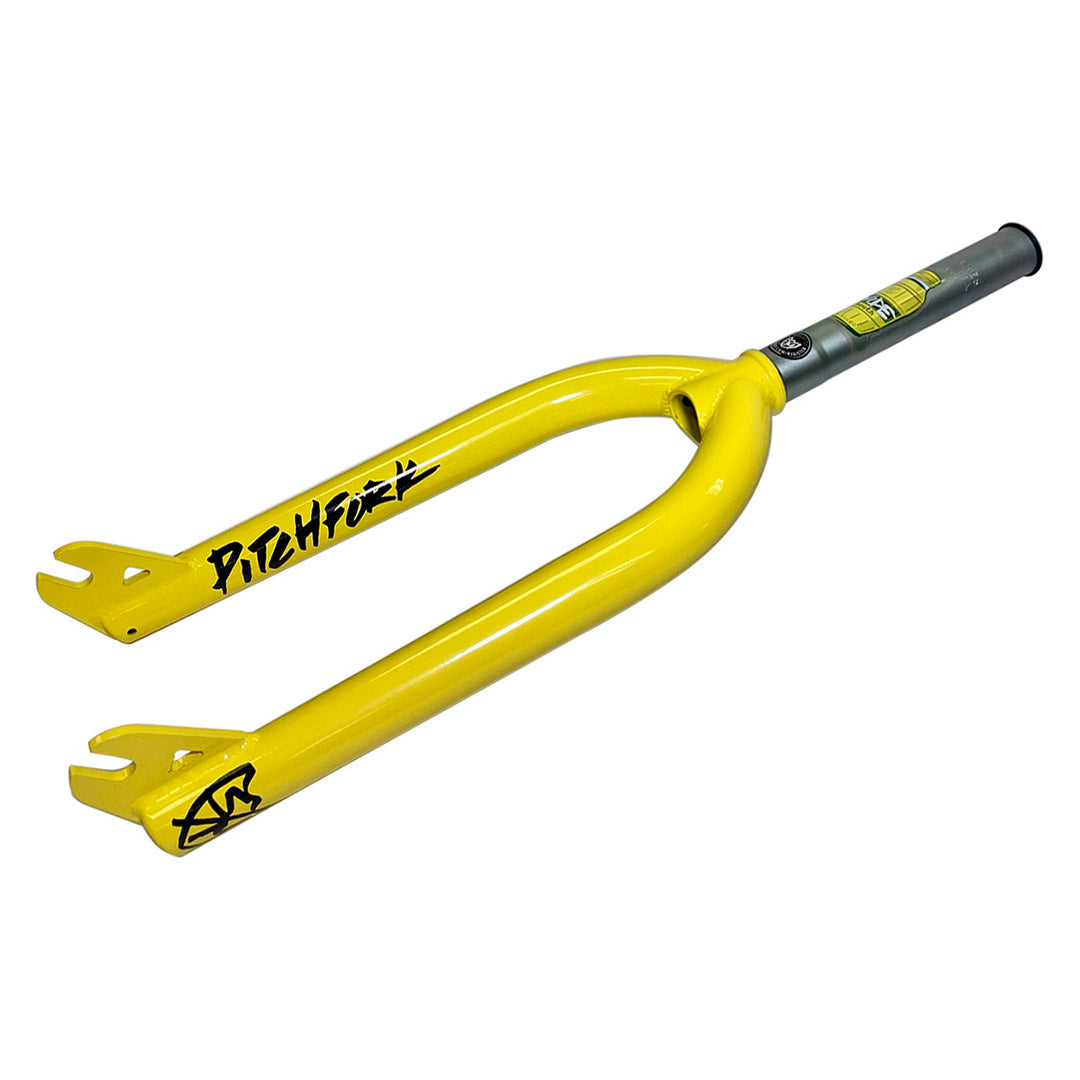

![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/files/02-PFT-WM_Dirt-Bike-Yellow-1.jpg?v=1684692164&width=1445)
![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/products/02-PFT-WM_Dirt-Bike-Yellow-1.jpg?v=1684692168&width=1445)
![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/files/02-PFT-WM_Brick-Red-2.jpg?v=1699984197&width=1445)

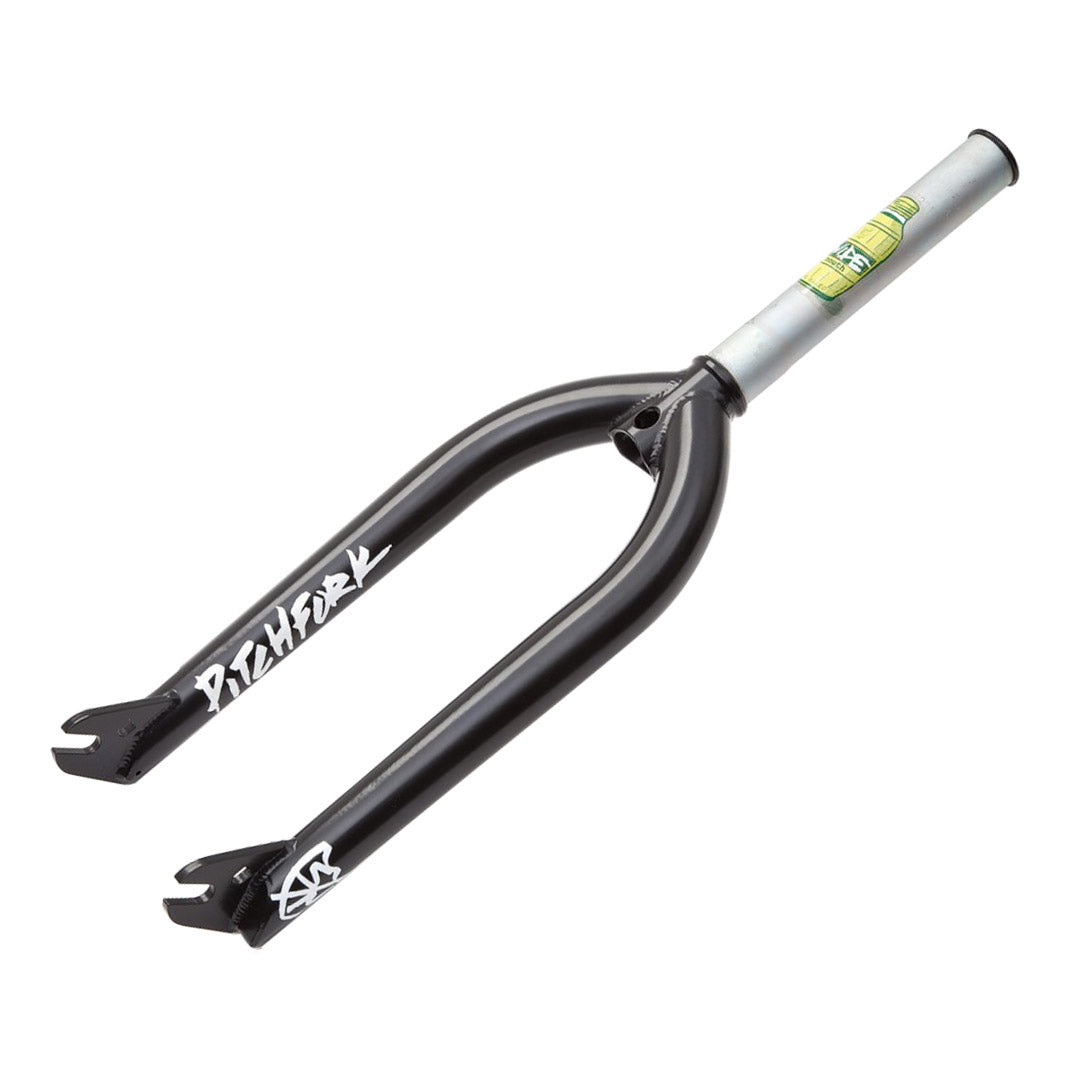

![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/files/02-PFT-WM_Flat-Black-1.jpg?v=1699984247&width=1445)

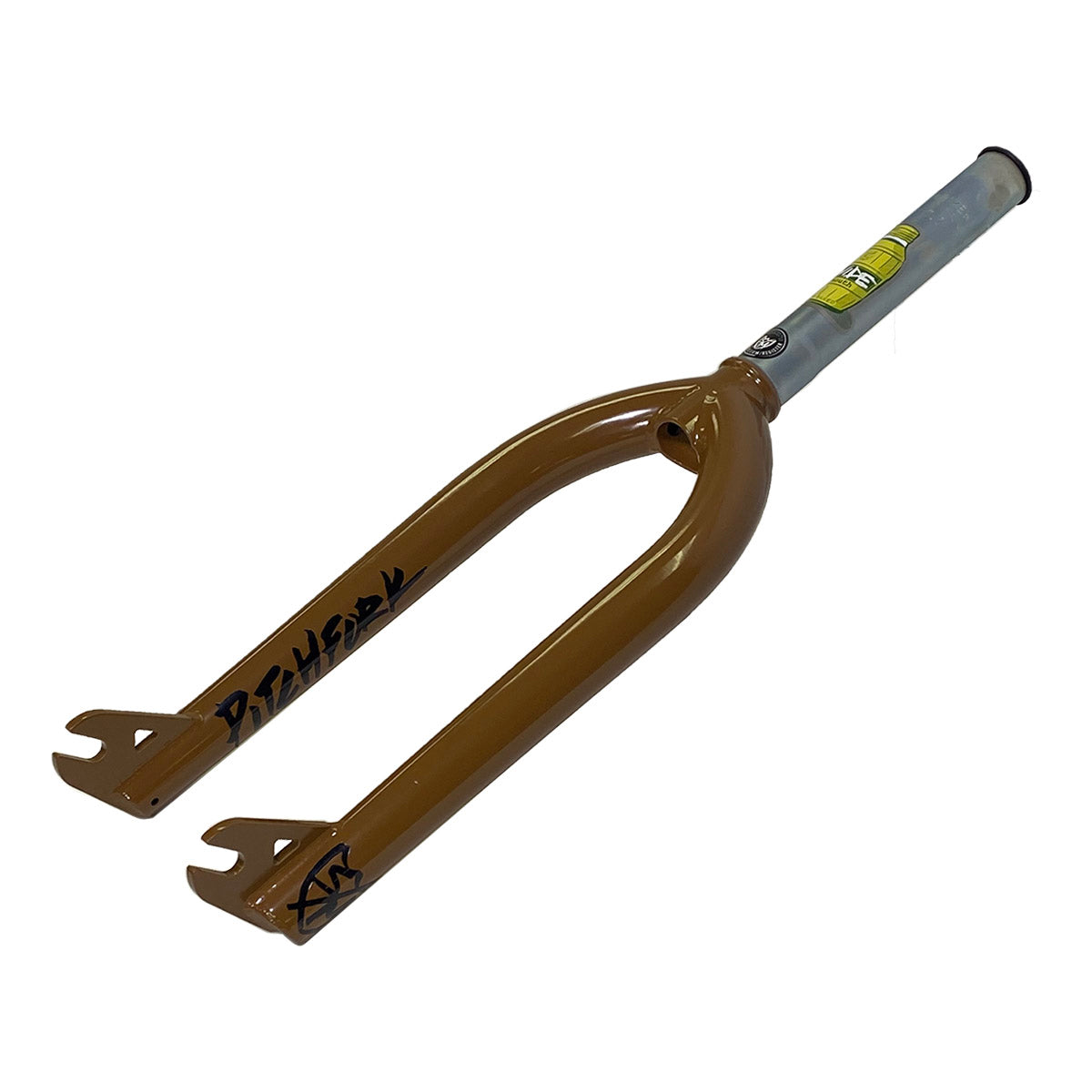

![S&M Widemouth 20" Pitch Forks](http://powersbmx.com/cdn/shop/files/02-PFT-WM_Olive-Brown-1.jpg?v=1699984304&width=1445)
