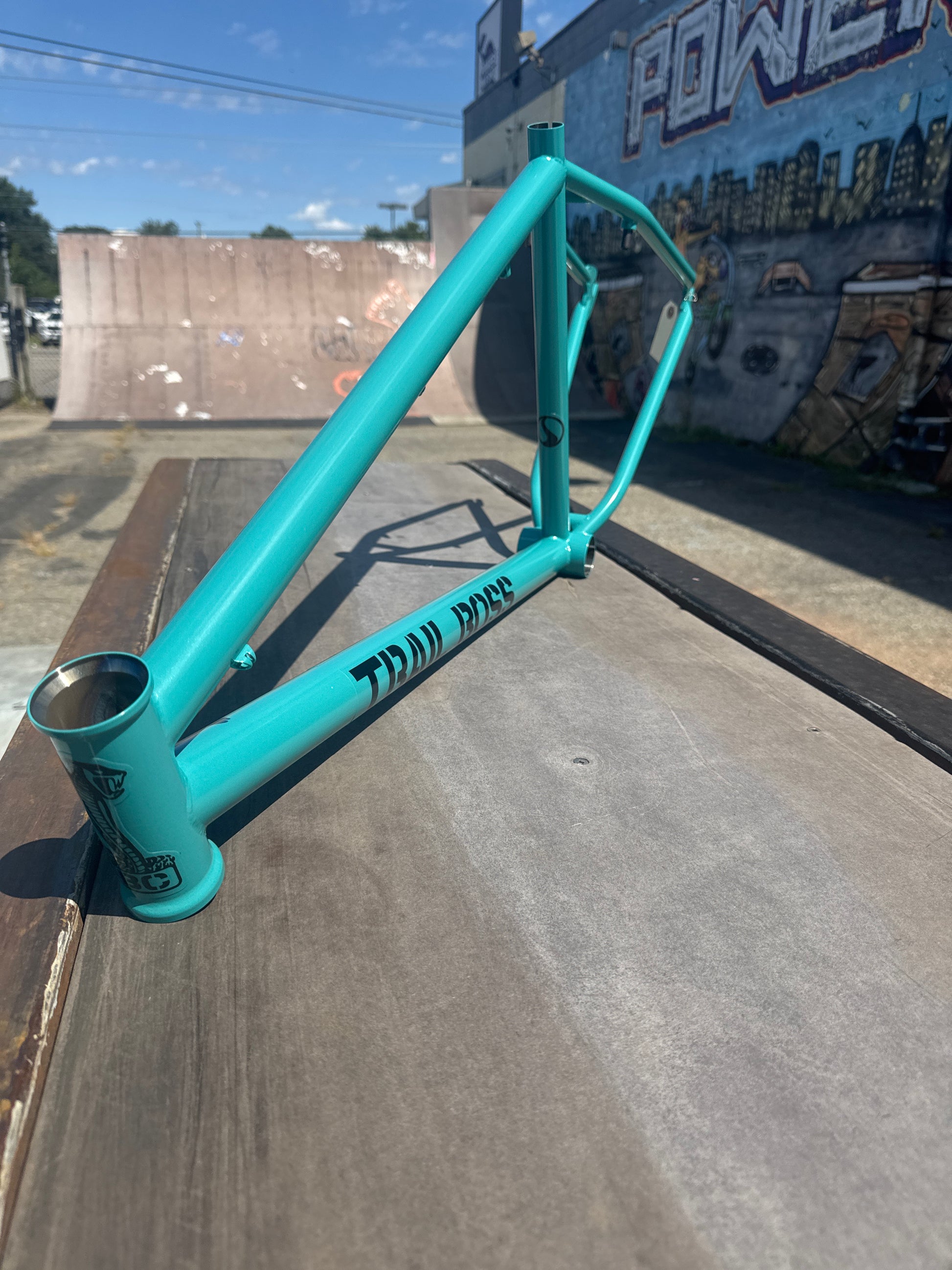

These 24/26" wheel frames are built around the TrailBoss tube set. Both are excellent all round cruiser, commuter, trails or park setups with the style and durability that make the TrailBoss a favorite in the Standard line up. The complete bike shown in the photo is to show the frame built up, price is for the frame only. Complete bikes are available by special order, contact to order.
24" Wheel Frame Specs.
| Top Tube |
21.5", 22", 22.5", 23" |
| Rear |
14.75" Slammed |
| Head Tube |
74.5 |
| Seat Stay |
71 |
| Stand Over Height |
12.5" |
| Bottom Bracket |
12 |
| BB |
Mid |
| Brake Choice |
Optional |
| Drop Out |
14mm or 3/8" |
| Head Tube |
Integrated |
26" Wheel Frame Specs.
| Top Tube |
21.5", 22", 22.5", 23" |
| Rear |
15.65" Slammed |
| Head Tube |
71 |
| Seat Stay |
71 |
| Stand Over Height |
14 |
| Bottom Bracket |
12.5 |
| BB |
Mid |
| Brake Choice |
Optional |
| Drop Out |
14mm or 3/8" |
| Head Tube |
Integrated |
