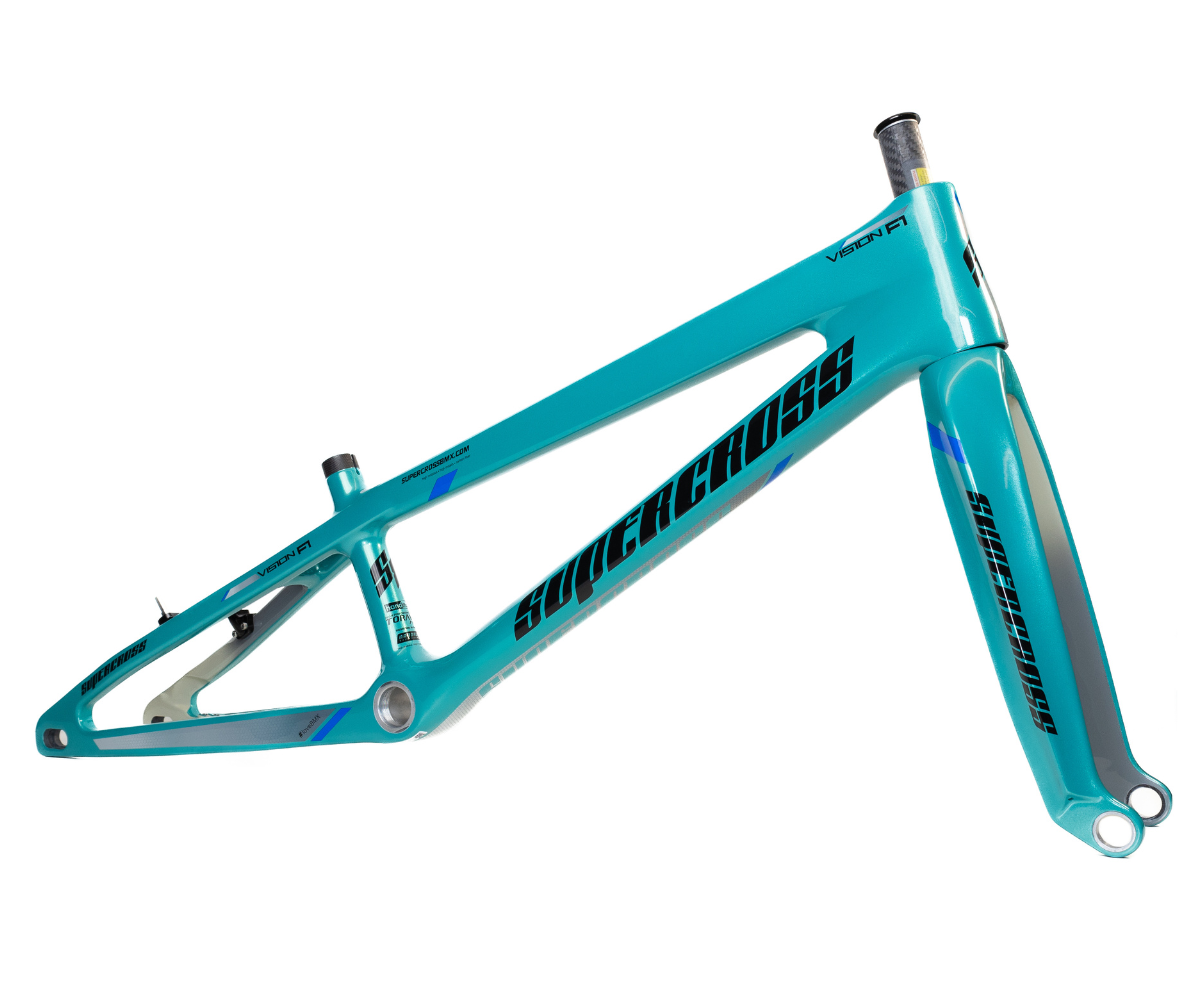

Supercross BMX | Vision F1 Pro 24" - Carbon Fiber Cruiser Racing Chassis

Supercross BMX | Vision F1 Pro 24" - Carbon Fiber Cruiser Racing Chassis

Supercross BMX

Regular price $ 2,195.95
Regular price Sale price $ 2,195.95
Sale Sold out
Color
Size

See the full product description & videos here

  • Monocoque (one-piece) frame and fork construction
    • TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)
  • Accepts 120mm Disc Brakes & All V-Braking systems
  • Fully captive, solid carbon rear dropout featuring the Supercross BMX FLIP/CHIP
  • Built-in chain idler/guide
  • Traditional Euro BB Shell bottom bracket
  • Each Pro Chassis contains:
    • 1 x Vision F1 Frame
    • 1 x Vision F1 matching fork
    • 1 x Steering tube top cap
    • 1 x 20mm adapters
    • 1 x Hydraulic disc brake adapter kit
    • 1 x Mechanical disc brake adapter arm
    • 2 x Removable V-Brake mounts
    • 2 x FLIP/CHIP’s (15mm & 10mm)
    • 1 x Chain Idler/Guide
    • 1 x Sealed Bearing Headset
  • Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork.

FRAME GEOMETRY


Supercross BMX VISION F1 Carbon Race Frame Geometry Chart

VISION F1 Carbon Pro 24"
Pro XL 24"
Pro XXL 24"
A. Top Tube Length 21.5" 22" 22.5"
B. Chainstay length 15.3" 15.3" 15.3"
C. Steertube Angle 73.5º 73.5º 73.5º
D. Seat Tube Angle 70º 70º 70º
E. Bottom Bracket Height 11.6" 11.6" 11.6"
Seat Post Size 27.2mm 27.2mm 27.2mm
Headset Type 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated
Wheel Size 24" X 1.75" 24" X 1.75" 24" X 1.75"

* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
